    Middle Automatic Motor Winding Machine / 4 Pole Stator Coil Winding Equipment

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : RXL4-100B
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Middle Automatic Motor Winding Machine / 4 Pole Stator Coil Winding Equipment

    Full automatic 4 pole motor winding machine / stator coil winding machine from Chinese professional manufacturer and supplier


    (1) Motor stator winding machine main function and characteristic

    The Chinese manufacturing motor winding machine has four winding heads with eight operation stations, high efficiency is its feature.

    The motor stator winding machine can automatically arrange the coils neatly into the winding mold, which is especially suitable for the motor stator winding with high production capacity requirement, high slot filling rate, small slot gap.

    Winding mode such as auto skip, auto cutting and auto indexing could be completed at a time successively ; Parameter could be set in human-machine interface,such as number of turns , winding speed, winding direction and so on ; Continuous/discontinuous winding way ; Coil making for 2-pole 4-pole 6-pole motor stator


    (2) Motor stator winding machine application

    The automatic motor stator winding machine is suitable for AC motor , induction motor , DC motor , small electric motor , synchronous motor , single phase motor , 3 phase motor , asynchronous motor , generator , shaded pole motor , electric fan motor , air conditioner motor , washing machine motor , etc.


    (3) Motor stator winding machine Main technical data

    Product name:Automatic 8 stations motor stator winding machine
    Wire diameter:0.19~1.2mm
    Max. stator stack length:100mm
    Max. stator OD:120mm
    Winding speed:≤2500RPM
    Swing diameter:220mm
    Winding head:4pcs
    Operation station:8pcs
    Air pressure:≥0.5MPa
    Transfer number:2~6section
    Voltage:380V/50/60HZ
    Power supply:15KW
    Weight:​about 5000kg
    Dimension:L2100*W1350*2200mm

    (4) Motor stator winding machine picture show:

    1. The motor winding machine has four winding heads with eight operation stations

    2 pole motor winding machine stator coil winder

    2. Motor stator winding machine tool display

    automatic motor winding machine induction motor coil winding equipment

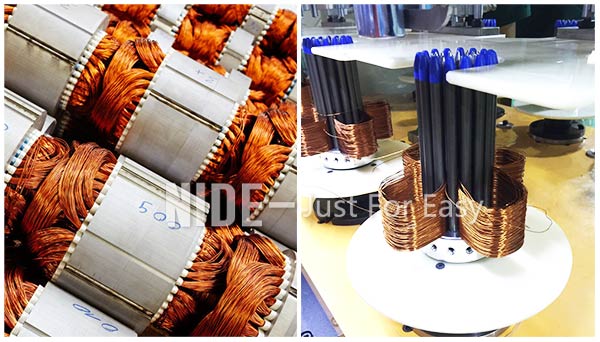

    3. Motor winding machine winding mold and stator display

    China manufacturing motor stator coil winding machine for sale


    The motor stator coil winding machine video https://youtu.be/GB2xykQSPjE
