    Big Power 2.2KW Coil Winding Machine / Automatic Submersible Motor Winding Machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : RX4-650C
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 120 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Big Power 2.2KW Coil Winding Machine / Automatic Submersible Motor Winding Machine

    Big power Medium submersible motor stator coil winding machine manufactured by Nide


    (1) Main technical parameter:

    Product name:big power medium motor stator coil winding machine
    Wire diameter:0.3~1.5mm
    Swing diameter:350~650mm
    Winding head:1
    Applicative frame size:200, 225, 250, 280
    Screw stroke:400mm
    Max RPM:160RPM
    Max wire number:≤20 pcs
    Power supply:380V/50/60Hz 2.2KW
    Air supply:0.4MPa
    Weight:800Kg
    Dimension:1500*1700*1550mm

    (2) Application

    This Motor Coil Winding Machine is suitable for winding the coil for Big power medium motor, such as submersible motor, Pump motor


    (3) Machine function and characteristic:
    The Motor Stator Coil Winding Machine adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. Big Stator Coil Winding Machine could produce different dimension coils which are for same series size stator by adjusting the tooling, and tension is adjustable.


    (4) Motor coil winding machine picture show:

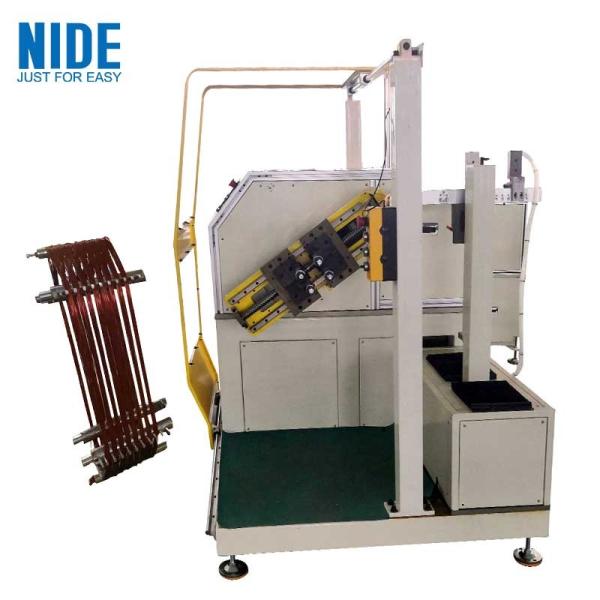

    The big power motor stator coil winding machine

    big power motor stator coil winding machine

    The Winding mold for the big power submersible motor stator coil winding machine

    The Winding mold for the big power submersible motor stator coil winding machine


    The motor coil winding machine youtube video https://youtu.be/gxElsbbCz2w
