    Horizontal structure stator winding lacing equipment for long stack length sator

    Horizontal structure stator winding lacing equipment for long stack length sator


    The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This horizontal single side stator winding lacing machine is suitable for the big stator with high winding over-hang. The tooling is movable, and convenient for stator fast laoding and unloading, hence to reduce the labor strength effectively.

    Technical data

    Stator I.D110~210mm
    Stator stack height100~260mm
    Stator O.D175~300mm
    Over-hang height20~65mm
    Slot number8~48 slots
    Power sourceAC 220V±10% 50/60Hz
    Total power0.75KW
    Weight450Kg
    Dimension1160*1200*1500mm


    Machine structure
    This machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.

    Competitive advantages
    Variety of application, easy operation.
    We have Overseas Service Center.
    Machine is controlled by PLC. All the parameter can be set in the touch screen.
    It is suitable for stators with different model number and dimension.
    The operation and tooling change process is easy.
    We could customize machine for our customer as per their requirement.
    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    This machine is controlled by PLC. All the parameter could be set on the touch screen,

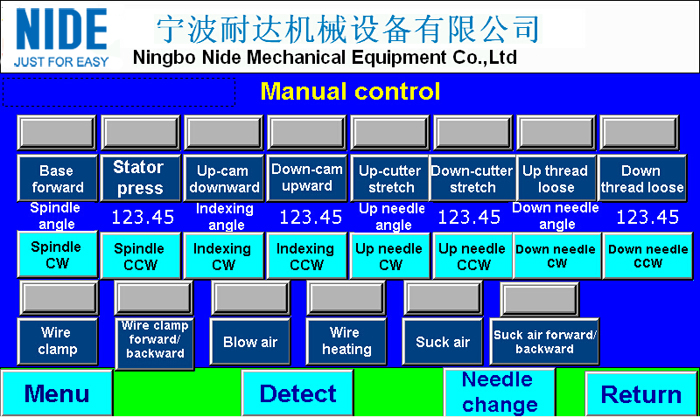

    The touch screen of the lacing machine
