    Automatic motor stator lacing machine coil winding lacing machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : BXSIIL1-160-160-6D
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 60 working days
    Supply Ability : 800 sets per year
    • Product Details
    • Company Profile

    Automatic motor stator lacing machine coil winding lacing machine

    Automatic motor stator lacing machine coil winding lacing machine



    Description:

    Double ends electric motor stator coil automatic lacing and binding machine .

    This Automatic motor stator coil lacing machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.

    This stator coil lacing machine adopts servo driven system, CNC control design and HIM program.

    The indexing is driven by servo system.

    Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

    Main spindle adopts servo control system.

    The rotation speed can be set.

    Two needles driven by servo system lace upper and lower coil simultaneously.

    Machine can automatically feed thread and cut thread.

    There is no need to tie a knot.

    Tooling change is fast and convenient.

    Stator stack length range is 50-130mm.

    Lacing tension can be set, Production capacity ≤1s/slot.

    Should be no copper wire snap and wire enamel broken.

    Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%.

    This stator coil lacing machine adopts safety grating protection system.

    Operator need to stand when operating.


    Applications:

    The stator coil lacing machine is suitable for lacing the oven-hang of the induction motor stator.

    It is used for stator which meets the specification of below.

    The stator coil lacing and binding machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.


    Specifications :

    Product nameAutomatic motor stator lacing machine
    Stator stack length15~120mm
    Min. stator ID33mm
    Max. stator OD150mm
    Over-hang height15~48mm
    Pitch timeAbout 0.5~0.7sec/slot
    Air pressure0.5~0.8MPa
    Power supply380V/50/60Hz
    Power3KW
    WeightAbout 920kg
    Dimension1600 x 700 x 1680mm
    Picture show:

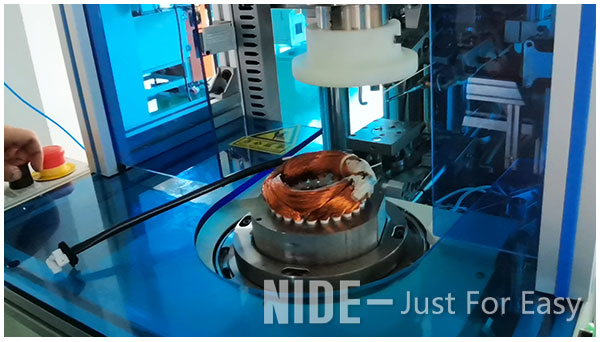

    Automatic stator coil lacing machine
    Double ends stator coil winding lacing machine
    motor coil winding lacing machine

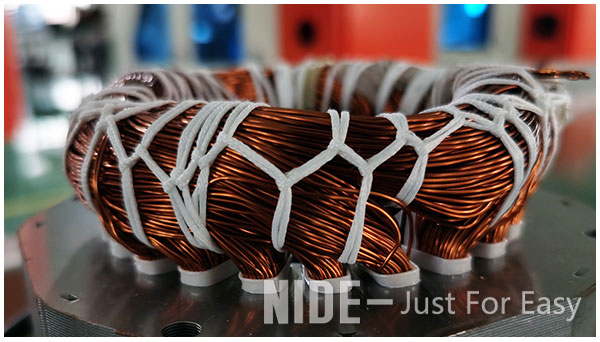

    motor coil lacing and binding machine
