    Automatic Lacing Machine Double Side Stator Coil End Motor Winding Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : BXSIIL1-160-160-6
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 60 working days
    Supply Ability : 600 sets per year
    • Product Details
    • Company Profile

    Automatic Lacing Machine Double Side Stator Coil End Motor Winding Machine

    Automatic Lacing Machine Double Side Stator Coil End Motor Winding Machine

    This stator coil end lacing machine adopts vertical loading structure, It is equipped with two needles, each needle for laing each side of stator coils. The needle movement is controlled by servo drive system to complete the lacing work. Main spindle speed is adjustable. The lacing type, lacing slot by slot, interval slot lacing and fancy lacing can be set inthe Industrial programmable PLC and HMI. This lacing machine is suitable for lacing multi-species, less yield or more lead wire stator. It has a mature and advanced technology; the machine quality is reliable; and it is easy to operate and maintain.


    Applications:
    This stator coil lacing machine is appropriate for micro induction motor like conditioner motor, washer motor, compressor motor, fan motor, alternator motor, pump motor etc.


    Lacing machine technical data

    ItemUnitData
    Sizemm1400(L)×580(W)×1600(H)
    Weightkg≤750kg
    Power380V/50Hz three phase four wire power
    Working pitch timeS/PC≤14(24 Slots)
    IDmmΦ40~Φ120
    ODmmΦ160
    Head coil heightmm50
    Tooling strokemm≤70
    Lacing speeds/s0.8
    Air sourceMpa0.4~0.8


    Competitive advantages:
    Fast speed , low noise; simple operation and easy tooling change, double sides lacing simultaneously. PLC and touch screen control, it's programmable.


    Operation step
    Connect lacing machine to power source and air source. Do threading.
    Put the stator in the tooling.
    Switch to "auto" mode. Then press "start" button by two hands.
    Machine will automatically do the lacing process.

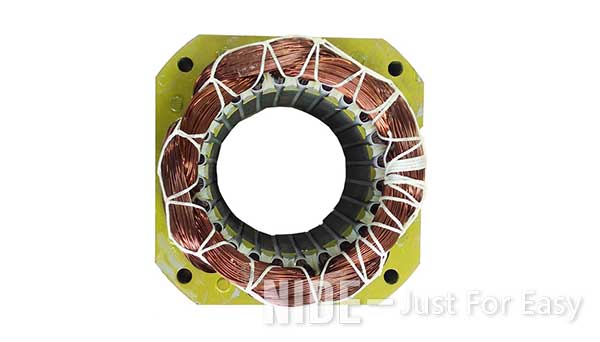

    Stator samples after lacing
