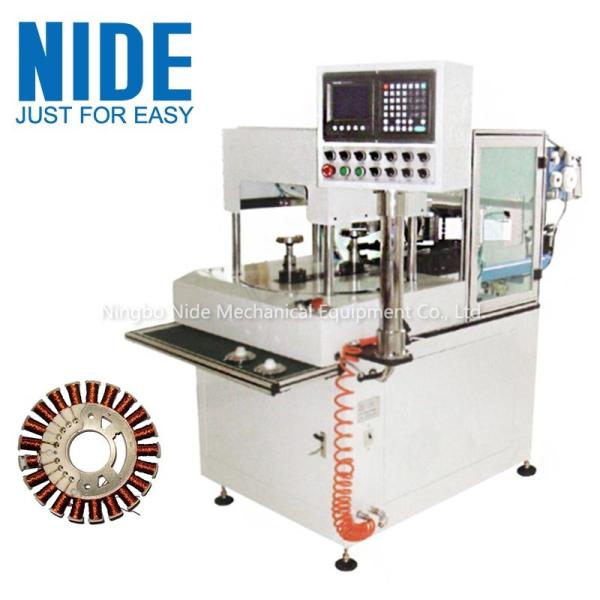

External Armature Automatic Fan Winding Machine Two Working Station

    Buy cheap External Armature Automatic Fan Winding Machine Two Working Station from wholesalers

    Buy cheap External Armature Automatic Fan Winding Machine Two Working Station from wholesalers
    • Buy cheap External Armature Automatic Fan Winding Machine Two Working Station from wholesalers

    External Armature Automatic Fan Winding Machine Two Working Station

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-SR8002AC
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 35 working days
    Supply Ability : 100 sets per year
    • Product Details
    • Company Profile

    External Armature Automatic Fan Winding Machine Two Working Station


    External Armature Automatic Ceiling Fan Winding Machine Two Working Station


    Quick Detail:


    1. This ceiling fan winding machine is suitable for external armature, table fan and ceiling fan stator .
    2. The ceiling fan motor winding process is automatically done by machine.
    3. This motor winding machine is used to winding coils into armature or stator slots. It has two working stations.
    4. It is controlled by micro computer.

    Description:

    This type of ceiling fan coil winding machine has two working stations and can wind two coils at same time. The whole winding process is done by machine automatically. Controlled by micro computer, this fan winding machine could do winding, array, and indexing progress automatically. The array and indexing movement is under the control of stepping motor. And the winding motion is controlled by frequency converting motor. The coil turn number could be accurate up to 0.1 round.


    Technical paramter:

    Wire diameter

    0.05~0.45mm

    Stator O.D

    100~163mm

    Slot number

    Less than 24 slots

    Stack height

    6~30mm

    RPM

    Max 2500RPM

    Voltage

    220v/50Hz, or customize

    Power

    AC 1.5KW

    Weight

    135Kg

    Dimension

    1350mm*630mm*1130mm


    Application:
    Ceiling Fan Coil Winding Machine is suitable for winding ceiling fan stator, external armature such as frequency conversion alternator and generator armature.

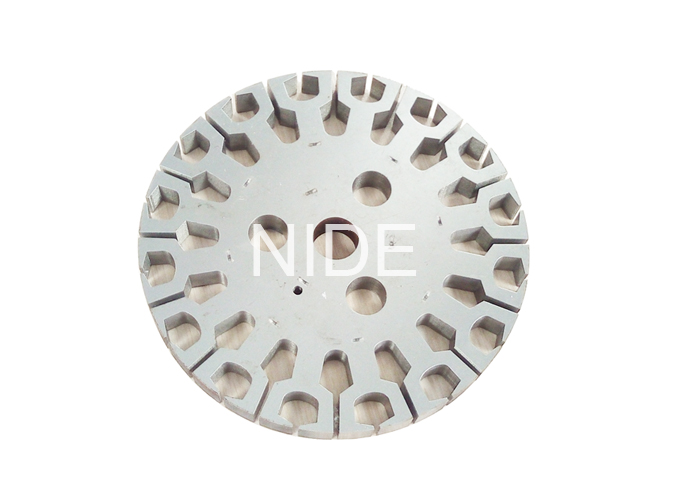

    This motor winding machine can wind below type of stators.
    FAN COIL WINDING MACHINE

    Information needed for fan stator coil winding machine inquiry


    It will be better if customer could send us detailed drawing including below information.
    1. Stator drawing
    2. Stator winding drawing
    3. Winding distribution drawing
    4. Other technical requirement
    If possible, it will be better if customer can send us samples.


    With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

    Customerized service1. Customized product design and manufacturing
    2. Customized tranning
    3.Technical suggestions
    After-sales service1. Warranty Period: 12 month usually
    2. Overseas service center available

    3. Engineers available to service overseas


    External Armature Automatic Fan Winding Machine Two Working Station

    NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

    NIDE has three main business divisions.

    The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

    The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.

    The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
