    Electric Bike Wheel Motor Stator Paper Inserting Machine Inslot paper insertion insulaiton paper inserting machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-RSI01
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 35 working days
    Supply Ability : 800 sets per year
    • Product Details
    • Company Profile

    Electric Bike Wheel Motor Stator Paper Inserting Machine Inslot paper insertion insulaiton paper inserting machine

    Electric Bike Wheel Motor Stator Paper Inserting Machine Inslot paper insertion insulaiton paper inserting machine

    This insulaition paper inserting machine is designed for wheel stator slot paper insertion. Double servo working system is adopted to improve the paper insertion efficiency dramatically. Parameter of stator slot number. feeding speed, indexing speed and indexing direction can be set in the HMI.Infinitely variable speeds are applicated to working frequency.During running, The stator insulation paper insertina machine has no obvious vibration or noise. After paper inserting, there should be no warp or deformation of stator lamination.


    (1) Technical parameter:


    Product nameBLDC wheel motor stator slot insulation paper inserting machine
    Stator OD:80~200mm
    Stack length range:18~35mm
    Insulation paper thickness:0.188~0.35mm
    Power supply:220V 50/60HZ 1.0KW
    Weight:350KG
    Dimension:500x550x1500
    Working station:double

    (2) Application:

    The paper inserting machine is suitable for wheel motor coil winding, such as brushless hub motor, electric bike motor , electric bicycle motor, electric tricycle motor, electric scooter motor, Balance car motor, Twist car motor, electric car, battery car, etc.


    (3) Machine function and characteristic:

    The paper insertion is designed for wheel motor stator slot paper insertion. It adopts servo working system which dramatically improve the paper inserting efficiency. The parameter of stator slots number, feeding speed, indexing speed and indexing direction can be set in the HMI.


    (4)Picture show

    1.The motor stator paper inserting machine show

    motor paper inserting machine

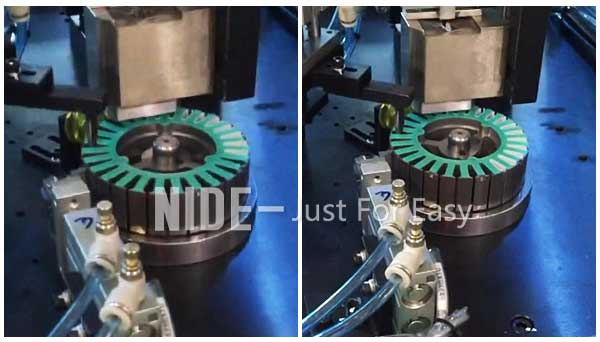

    2.The machine inserts the paper into the stator slot

    slot paper inserting machine for electric bike wheel hub motor


    (5)Competitive advantages

    Variety of application, easy operation.

    We have Overseas Service Center.

    Machine is controlled by PLC. All the parameter can be set in the touch screen.

    It is suitable for stators with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
