    Fully Automatic Slot Insulation Paper Inserting Machine For Special - shaped Slot Stator

    Ask Lasest Price
    Brand Name : Nide
    Model Number : CZSL1-160-200
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 35 working days
    Supply Ability : 800 sets per year
    • Product Details
    • Company Profile

    Fully Automatic Slot Insulation Paper Inserting Machine For Special - shaped Slot Stator


    Fully Automatic Slot Insulation Paper Inserting Machine For Special - shaped Slot Stator


    Quick Detail:

    1. This paper inserting machine is used for stator with special-shaped slot stator..

    2. The automatic slot paper insertion machine can do paper forming, cutting and inserting automatically.

    3. The slot paper insting Machine is controled byPLC.

    4. All the parameter can be programmed in the touch screen.


    Description:

    This stator paper inserting machine is designed for special-shaped slot stator with different sizes of slot to do insulation paper inserting machine; This machine can finish insulation paper insertion at a time; It will do automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mode is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.


    Applications:

    This stator slot insulation paper inserting machine is used for induction motor stator which meet the specification in the below table.


    Specifications :

    Model

    CZSL1-60/160

    Stator I.D

    40~80mm

    Stator O.D

    ≤160mm

    Stator stack length

    ≤60mm

    Width of edge folded

    2.5~4mm

    Feeding length

    ≥12mm

    Paper thickness

    ≤0.35mm

    Power supply

    380V/50/60Hz 0.75KW

    Air pressure

    ≥0.5MPa

    Weight

    250Kg

    Dimension

    1150*1000*1500mm


    Competitive advantages:

    Simple operation, low noise, fast speed and high automation. Insert slot paper for different shape slot at one time. PLC and touch screen control.

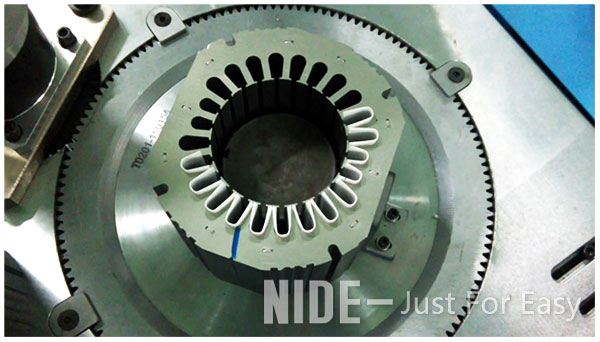

    Different-slot-electric-motor-stator-insulation-paper-inserting-mahcine92

    Different-slot-electric-motor-stator-insulation-paper-inserting-mahcine93

    Different-slot-electric-motor-stator-insulation-paper-inserting-mahcine94


    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    electrical insulation meterial motor winding insulation paper
