    Winding Final Coil Forming Machine / Wire Winding Machine For Air Conditioner Motor

    Ask Lasest Price
    Brand Name : Nide
    Model Number : NI-HSX-4C
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100set
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

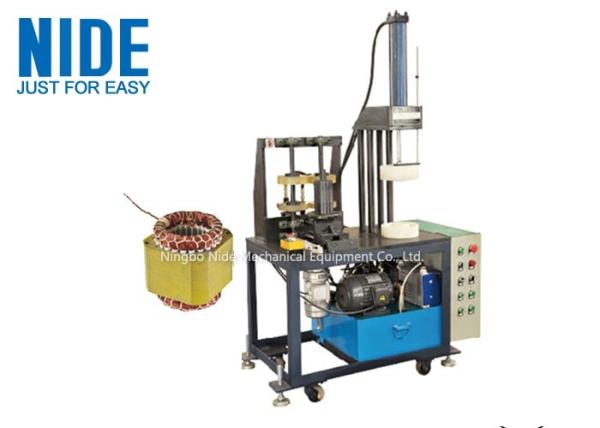

    Winding Final Coil Forming Machine / Wire Winding Machine For Air Conditioner Motor

    Economic Type Automatic Stator Coil final Forming Machine For Induction Motor


    Description

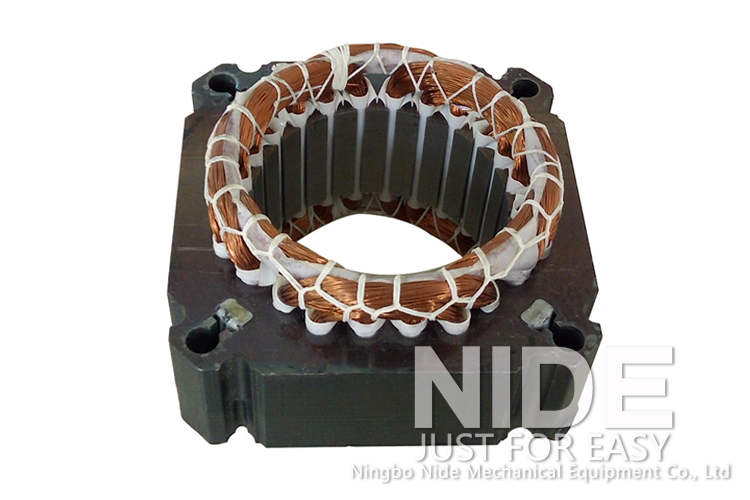

    This inducution motor stator coil forming machine adpots flexible principles of inner expansion, out wrapping and edge forming to form the stator coil. The coil forming process can ensure appropriate winding outside dimension after lacing. Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.


    Technical data

    Production nameNI-HSX-4C stator coil final forming machine
    Stack height15-150mm
    Max stator OD200mm
    Stator ID range≥30mm
    Displacement of cylinder20F
    Power supply380V/50HZ
    Power2.5KW
    Dimension1300x630x2000mm
    Weight500KG

    Application

    The Economic Type Automatic Stator Coil Forming Machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.


    Competitive advantages
    Variety of application, easy operation.
    We directly supply our machine to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    We could customize machine for our customer.

    Information needed for formng machine inquiry

    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Stato winding drawing
    4. Required productivity
    5. Other technical requirement
    If possible, it will be better if customer can send us samples.
