    Automatic Big Motor Stator Wire Making Machine of High Performance

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RX6-1200B
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 35 working days
    Supply Ability : 180 sets per year
    • Product Details
    • Company Profile

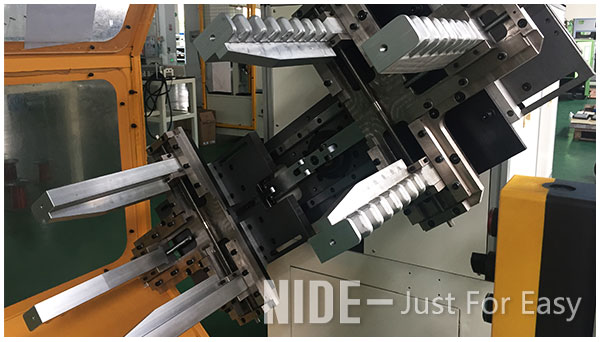

    Automatic Big Motor Stator Wire Making Machine of High Performance

    Automatic Big Motor Stator Wire Making Machine of High Performance


    Description:

    Adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. This machine is suitable for winding the coil for big power motor. The tooling could be auto extend and retract. Therefore, it is no need to discharge the tooling when taking out the finished coil. Thus it can reduce the labor and improve the effciency. It could produce different dimension coils which is for same series size stator by adjusting the tooling, and tension is adjustable too.

    Technical data:

    Swing dia

    ≤1200mm

    Effective length of the tooling≤850mm
    Parallel wire no.≤40pcs

    Wire diameter

    OD 0.4~1.5mm

    Wire arraying width

    850mm

    Power

    220V- 50/60HZ, 5.5Kw

    Weight

    1100kg

    Air pressure

    0.4~0.6mpa

    Dimension

    2300mm X2200mm X2000mm

    Information needed for big motor stator wire making machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator drawing
    2. Stator winding drawing
    3. Winding distribution drawing
    4. Other technical requirement
    If possible, it will be better if customer can send us samples.


    Competitive advantages:

    Variety of application, easy operation.
    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    We could customize machine for our customer as per their requirement.

    We have Overseas Service Center.
