4 Working Station Stator Lace Machine Automatic Winding Machine Touch Screen Control

    Buy cheap 4 Working Station Stator Lace Machine Automatic Winding Machine Touch Screen Control from wholesalers

    Buy cheap 4 Working Station Stator Lace Machine Automatic Winding Machine Touch Screen Control from wholesalers
    • Buy cheap 4 Working Station Stator Lace Machine Automatic Winding Machine Touch Screen Control from wholesalers

    4 Working Station Stator Lace Machine Automatic Winding Machine Touch Screen Control

    Ask Lasest Price
    Brand Name : Nide
    Model Number : BXSIIL4-160-160C
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100set per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    4 Working Station Stator Lace Machine Automatic Winding Machine Touch Screen Control


    Stator Lace Machine Automatic Stator Production Machine Touchscreen Control


    This stator lace machine is a full automatic type machine, it is equipped with a conveyor used to transfer the stators. The four working stations ensure the automation and efficiency of this machine. Stator loading should be done manually. The machine can be connected wth production line to achieve mass production. It is conrolled by PLC, and all the parameter can be displayed and set in the touch screen. The machine can store different stator parameter.


    Application
    It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.


    Technical data of lacing machine

    Stator ODφ40-φ160mm
    Stator ID≤100mm
    Stack Height30-160mm
    Height of Coil≤65mm
    Pitch time≤14s/pc(24 slots)
    Air Pressure0.4-0.6MPa
    Power supply380V 50/60Hz 6Kw
    Weight≈1500Kg
    Dimension(L)2000×(W)1100×(H)1900mm


    Machine main function and characteristic
    This machine adopts turntable plates structure with four working station, equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and ect. Overhang winding adopts twin needle lacing simultaneously. Needle transpositioning, hooking and stator indexing are controlled by five spindle servo system.
    Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing. With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.

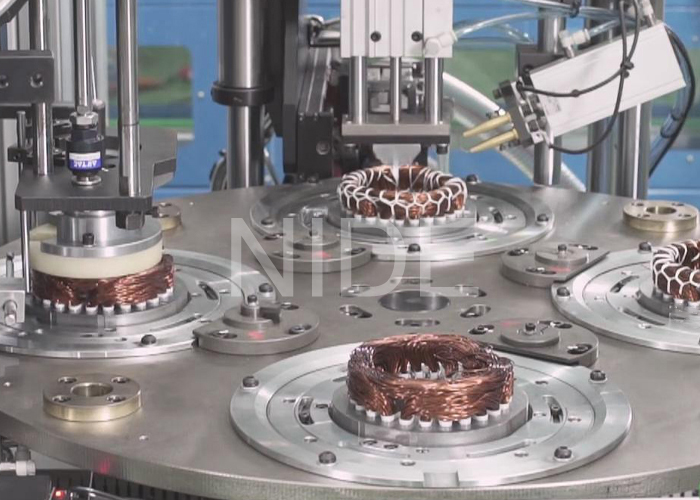

    The working station of this lacing machine

    stator lacing machine


    Stator made by this machine
