    Multi Layer Automatic Coil Winding Machine For Micro Air Conditioner Motor

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RX3A-550
    Payment Terms : T/T, L/C
    Certification : CCC
    Price : Negotiable
    Supply Ability : 100set
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Multi Layer Automatic Coil Winding Machine For Micro Air Conditioner Motor

    Multi Layer Automatic Coil Winding Machine For Micro Air Conditioner Motor


    Quick Detail:

    1. Model No.: RX3-550

    2. This automatic coil winding machine is suitable for multi-connected and multi layer winding.

    3. It can wind 1-8 coils simultaneously.

    4. Turns number, wire diameter can be set in the controller.

    5 .This machine can apply to variety of micro motors.


    Description:

    Automatic Coil Winding Machine

    RX1-160 automatic coil winding machine is suitable for multi-connected and multi layer winding; wind 1-8 coils simultaneously at one time; automatic slot change, starting winding position, idling start, idling stop, double-ended stop, automatic reset and automatic start could be set in control system. There are two alternate spindles to facilitate higher output; apply to all kinds of micro motors such as a motor, pump motor, air conditioner motor, three phase machine, etc. Turns number, wire diameter can be set in the controller.


    Winding Controller:

    Here customer could set the wire diameter, turn number, coil number, and it will display the output. And customer could pre-set the output. Machine will stop automatically once it produces the required quantity.


    Applications:

    This automatic coil winding machine is suitable for multi-connected and multi layer winding. Apply to all kinds of micro motors such as a motor, pump motor, air conditioner motor, three phase machine, etc.


    Specifications:

    Diameter of wire

    0.08~1.0mm

    Wire head

    1

    Max stack height

    300mm

    Winding stator OD

    210mm

    Screw stroke

    400mm

    Max RPM

    500R.P.M

    Power supply

    220V/50/60Hz 1,5KW

    Air source

    0.4MPa

    Dimension

    13600mm × 1300mm × 1280mm

    Weight

    ≈ 800kg


    Competitive advantages:

    Variety of application, easy operation.

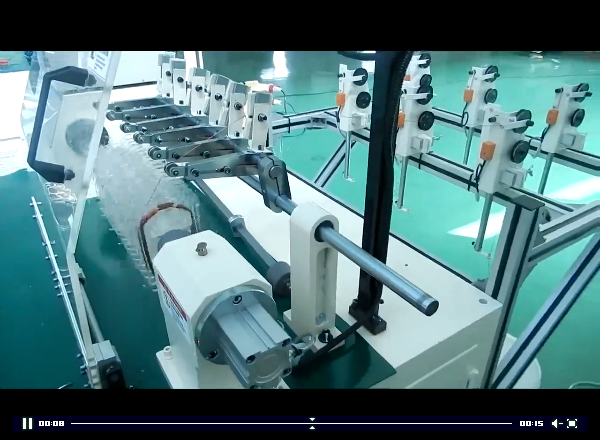

    Click the below picture to view more.
