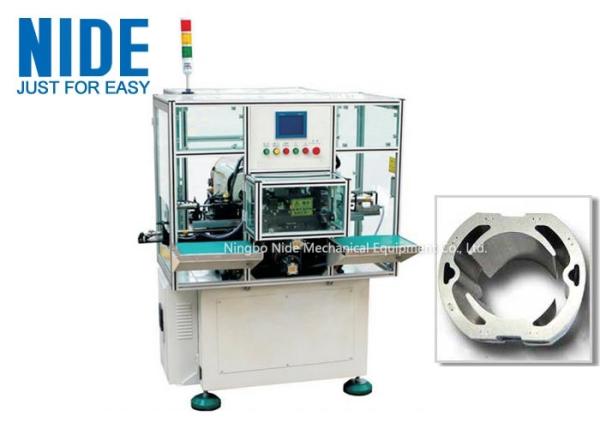

    AC380v High Speed Horizontal Stator Winding Machine 2100*1250*1830mm

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-SW-2
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 60 working days
    Supply Ability : 60 sets per month
    • Product Details
    • Company Profile

    AC380v High Speed Horizontal Stator Winding Machine 2100*1250*1830mm


    AC380v High Speed Horizontal Stator Winding Machine 2100*1250*1830mm


    Quick Detail:


    1. Model No.: ND-SW-2
    2. This machine has two working station.
    3. Easily to change the fixture for different types of stators.
    4. It could adapt to different requirement of different stator models.
    5. It can wind two stators at same time.

    Description:


    This Automatic stator winding machine could wind two stators at same time. Fixtures are in cycle operation automatically. No need to assemble fixture on the stator. It is benefit for the on-line operation

    Function:


    1. Cast iron or steel frame can absorb the shock. Accuracy is stable. The maximum winding speed is up to 450rpm (according to the wire diameter).

    2. All the actions are fully automatic (including loading and unloading). The winding could be more stable and efficient.

    3. The cutting part structure is in compact. Wire clamping and cutting is finished at the same time.

    4. Easily to change the fixture for different types of stators.

    5. Fixtures are in cycle operation automatically.It is benefit for the on-line operation.

    6. Permanent magnet tensioning device enables the tension adjustment.

    7. Travel and swing angle is adjusted within 150-220mm (mechanical adjustment) .It could adapt to different requirement of different stator models.

    8. Two working stations

    Parameter:


    Stator O.D

    50~90mm

    Wire diameter

    0.25~0.8mm

    Stator stack length

    20~45mmm(standard);30~60mm(lengthen)

    Stator I.D

    30~50

    Slot number

    2 poles

    Air pressure

    0.4~0.7MPa

    Lubrication mode

    Continuous lubrication oiling machine

    Voltage

    AC380V,50/60Hz

    Weight

    1800Kg

    Dimension

    2100*1250*1830mm


    Competitive advantages:


    It can wind two stators at same time. Easily change the fixture for different types of stators.
