    BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-S2W01G
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 35 working days
    Supply Ability : 600 sets per year
    • Product Details
    • Company Profile

    BLDC Motor Coil Winding Machine / Fan Stator Winding Machine Servo System


    Motor Coil Winding Machine / Fan Stator Winding Machine Servo System


    Quick detail

    1. this needle winding machine equips with servo system.

    2. It will automatically do winding process.

    3. It is easy to operate.

    4. The winding parameter can be set in touch screen.

    5. It is suitable for BLDC stator to do winding.


    Description

    This stator coil winding machine is suitable for winding BLDC stator. It equips with servo system. It can automatically intert wire end, winding, arraying, indexing, cutting, demolding. It can diagnose fault, count output, etc. Other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed in the touch screen. This machine is easy to operate and maintain.


    Technical parameter

    ProductionAutomatic BLDC Motor sator Coil Winding Machine
    Suitable OD:≤150mm
    Suitable ID;≥25mm
    Suitable thichness:10~100mm
    Suitable wire diameter:0.3-1.0mm
    Power supply:220V/ 50/60Hz
    Weigth:600Kg
    Deminsion:1400*900*2000mm

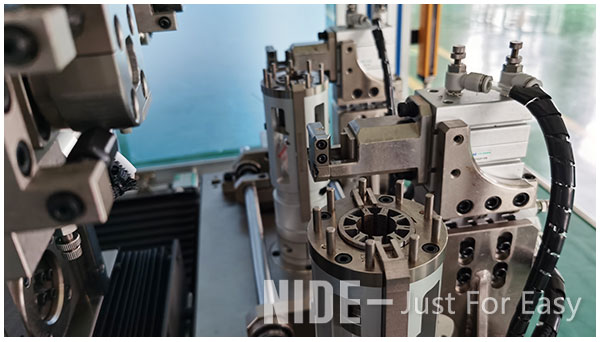

    Picture show

    Automatic stator winding machine

    needle winding machine

    automatic stator winding machine

    automatic needle winding machine

    automatic BLDC stator needle winding machine

    Competitive advantages

    Variety of application, easy operation.

    We have Overseas Service Center.

    It is suitable for rotor or stator with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    This machine is controlled by PLC. All the parameter could be set on the touch screen,


    Operation step
    1. Power on the machine
    2. Thread the wire
    3. Put stator to the working station table
    4. Adjust the tooling according to different model stator
    5. Set the stator diameter in the touch screen then select the pre-set data.
    6. Press "start" button.
    7. Machine will automatically do winding.
    8. Take out the stator


    BLDC needle winding machine.pdf


    Please click below picture to view video.

    automatic BLDC inslot stator needle winding machine
