    RAL9010 Electric Motor Production Line Armature Auto Winding Machine

    Ask Lasest Price
    Brand Name : Nide
    Delivery Time : 90days
    Model Number : ND-ZZX-2
    Certification : CCC
    Supply Ability : 10set
    Price : negotiable
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    RAL9010 Electric Motor Production Line Armature Auto Winding Machine


    Armature Auto Winding Machine Electric Motor Production Line


    This universal motor rotor automatic production machine assembley line can be produced in two different process according to client's requirements.

    Process 1:
    Shaft press---end field press---commutator press----armature insulation paper inserting---armature winding—commutator welding----wedge inserting— armature testing.

    This electric motor production line including: shaft pressing machine, end plate pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine.


    armature production machine.pdf

    Process 2:

    Armature insulation paper inserting---armature winding—commutator welding----wedge inserting—- armature testing.

    There are three kinds of production line according to different conveyor: S1, S2 and S3.
    S1: Support the armature on the armature shaft, this way maybe damage the shaft.
    S2: Support the armature on the lamination, it can protect the shaft and has low noise.
    S3: Put the armature on a conveyor plate, it can protect the shaft, lower noise and has nice appearance.


    The armature production line working show

    automatic armature production line

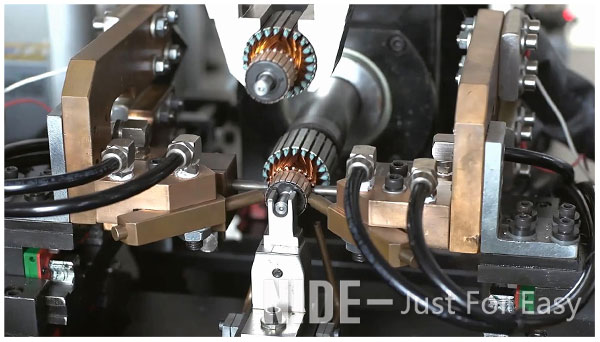

    The armature rotor winding machine

    Automatic armature winding machine

    The armature rotor insulation paper inserting processing

    automatic armature slot insulation paper inserting machine

    The armature rotor commutator spot welding process


    automatic armature commutator spot welding machine
