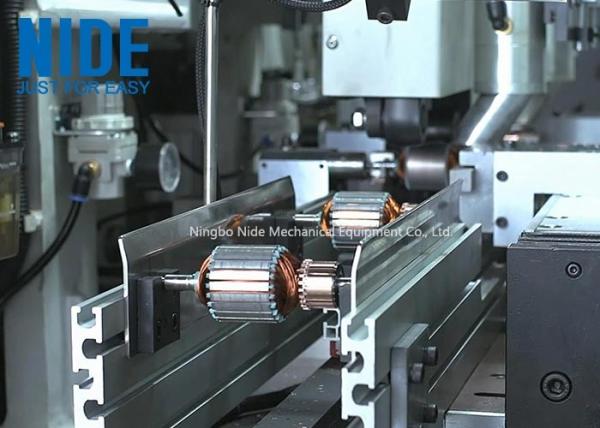

Automatic Armature Winding Machine Rotor Electric Motor Production Line

Quick Detail:

1. This armature assembly line is of high automation.

2. The working effiecency is high, and it saves labor cost.

3. The armatire machines detect the unquanlifed rotor automaticlly.

4. The production line decreases the larbor cost.

Description:

This electric motor production line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine.

Process 1:
Shaft press---end cover press---commutator press----armature insulation paper inserting---armature winding—commutator welding----wedge inserting— armature testing.

armature production machine.pdf

Click below picutre to view the vidio.

Shaft pressing machine

Shaft Pressing machine is used to insert shaft into lamination. User only need to load lamination and shaft. Then machine will do inserting automatically.

End cover machine

After shaft inserted, assembly line will transfer the rotor to next station. And it will do end cover inserting.

It adopts vibration boult feeding method.

Commutator Pressing machine

This machine is used for pressing commutator onto the shaft. Machine can automatic feeding commutator and armature core. This machine can also be connected to a production line to achieve mass production requirement.

Insluation paper inserting machine

This machine is used to inserting paper into rotor slot. The insulation material can be as per customer's requirement, DMD, DM, polyester film are all can be used in this machine.

Rotor winding machine

After doing paper inserting machine, mechanical arm and converyor will carry the rotor the rotor winding machine position. The machine is equipped with touch screen and PLC, winding parameter could be set and modified on the screen.

Commutator welding machine

It can weld both riser and hook type commutators. This machine is applied to DC motor and universal motor. It is controlled by PCL, all the data setting can be done on the touch sreeen. There are four power control method, namely secondary constant current, secondary constant voltage secondary constant frequency.

Wedge inserting machine

The wedge material can be as per customer's requirement, DMD, DM, polyester film are all can be used in this machine.

Rotor testing machine

It is suitable for testing less than 72 segments armature. The Voltage withstand test time could be set as per different requirements. Testing items could be screened.Testing data saved automatically, and could be traced and printed at any time.
