    Vertical Type Stator Automatic Coil Winding Machine With Double Heads

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXL7-100
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 60 working days
    Supply Ability : 100set
    • Product Details
    • Company Profile

    Vertical Type Stator Automatic Coil Winding Machine With Double Heads

    Vertical Type Stator Automatic Coil Winding Machine With Double Heads

    (1) Main technical data

    Winding head

    2pc

    Wire diameter

    0.18~1.2mm

    Winding speed

    ≤2500RPM

    Max stack OD

    200mm

    Max stack height

    150mm

    Fly fork diameter

    400mm

    Transfer number

    1~5 section

    Power supply

    380V/50/60HZ 7.5KW

    Weight

    about 2000kg

    Dimension

    L1900*W1100*2100mm

    (2) Application:
    This machine is suitable for 2 poles, 4 poles and 6poles coils winding.


    (3) Machine main function and characteristic
    This machine has two winding heads with four working station. The main phase and auxiliary phase can be wound simultaneously. It is suitbale for high production capacity, high slot filling rate, small slot opening stator coil winding. Different winding mode can be selected in the touch screen, like auto skip, auto cutting and auto indexing. Other parameter also can be set in the touch screen, like continuous/discontinuour winding method.


    (4) Competitive advantages

    Variety of application, easy operation.

    We have Overseas Service Center.

    Machine is controlled by PLC. All the parameter can be set in the touch screen.

    It is suitable for stators with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

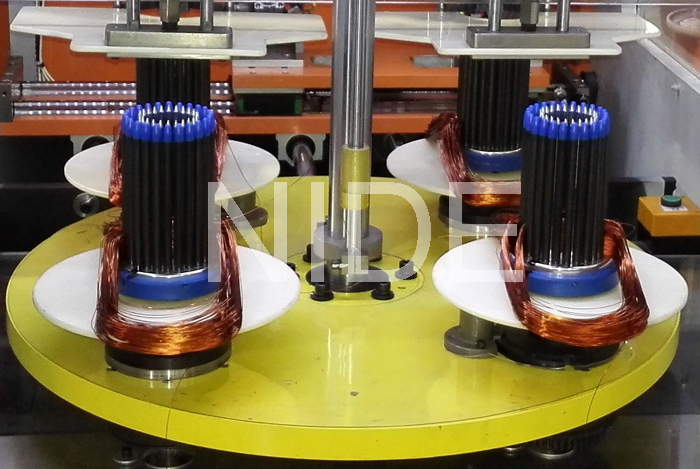

    Machine working station, click picture to vide video
