    High Automation Coil Inserting Machine Deep Water Pump Coil Insertion Machine india

    Ask Lasest Price
    Brand Name : Nide
    Model Number : QWB1-600/150
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 300 sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    High Automation Coil Inserting Machine Deep Water Pump Coil Insertion Machine india

    High Automation Coil Inserting Machine Deep Water Pump Coil Insertion Machine


    (1) Main technicaldata

    Stator Stack length:300~600mm
    Stator OD:Max 300mm
    Stator ID:50~150mm
    Wire diameter:0.18~1.2mm
    Working station:sinlge
    Control method:PLC
    Voltage:380V/50/60HZ
    Power:3.5Kw
    Weight:about 1200kg
    Dimension:L2100*W2000*1600mm


    (2) Application
    The coi insertion machin is applied to deep water pump motor and other various type of overlength motor stator.


    (3) Machine mainfunction and characteristic
    This is horizontal type semi-auto winding inserting machine. It adopts Mitsubishi AC servo motor and pneumatic element system drive. It si controlled by PLC and equipped with X and Y spindle auto feeding device. It can automatically insert coil and wedge into stator slot simultaneously.


    (4) Competitive advantages

    Variety of application, easy operation.

    We have Overseas Service Center.

    Machine is controlled by PLC. All the parameter can be set in the touch screen.

    It is suitable for stators with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.


    (5) Information needed for stator winding inserting machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Wire connection drawing
    4. Stator application
    5 Required productivity
    6 Other technical requirement

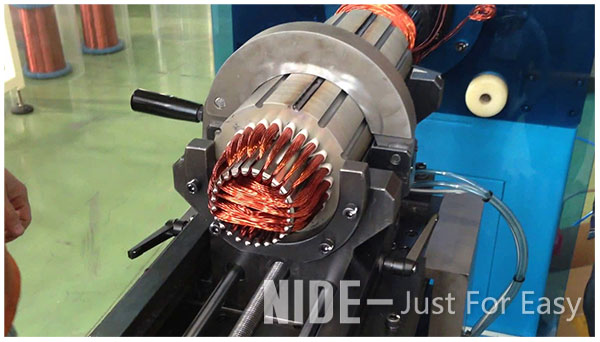

    Inserting process shown in the picture of this pump motor stator coil and wedge inserting machine


    High Automation Coil Inserting Machine Deep Water Pump Coil Insertion Machine-1

    High Automation Coil Inserting Machine Deep Water Pump Coil Insertion Machine-2
