    High Effeciency Lacing Machine Four Working Stations Stator Coil Winding Lacer


    High Effeciency Lacing Machine Four Working Stations Stator Coil Winding Lacer


    (1) Technical data


    Production nameThe automatic 4 working stations stator coil lacing machine
    Stator ODφ40-φ160mm
    Stator ID≤100mm
    Stack Height30-160mm
    Height of Coil≤65mm
    Pitch time≤14s/pc(24 slots)
    Air Pressure0.4-0.6MPa
    Power supply380V 50/60Hz 6Kw
    Weight≈1500Kg
    Dimension(L)2000×(W)1100×(H)1900mm

    (2) Application
    The automatic stator coil lacing machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.



    (3) Machine main function and characteristic
    This automatic stator coil lacing machine adopts turntable plates structure with four working station, equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and ect. Overhang winding adopts twin needle lacing simultaneously. Needle transpositioning, hooking and stator indexing are controlled by five spindle servo system.
    Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing. With fast speed, low noise, simple operation and easy tooling change, this lacing machine can be connected to automatic stator production line.

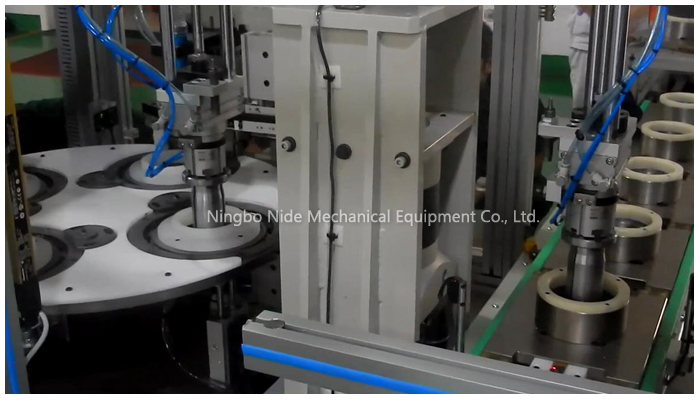

    the stator coil lacing machine picture

    1.the stator coil lacing machine has four working stations

    2.when the stator lacing machine working ,it can doubule two sides lace the stator coil wire up and down stator lacing machine coil lacing machine
