    Electrical Motor Coil Inserting Machine , Stator Semi auto insertion machine


    Electrical Motor Coil Inserting Machine , Stator Semi auto insertion machine


    Quick Detail:


    1. This can wind coil and insert wedge simultaneously.
    2. Wedge fedding mode can be set according to different motor.
    3. easy operation and convenient tooling change.
    4. It is controlled by PLC. All the parameter can be set in the touch screen

    Description:

    This machine is used to inserting coil and wedge into stator. And it can insert coil and wedge simultaneously. This HMI can set all the necessary data. With easy and convenient tooling change process, this machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.


    Wedge fedding mode can be set according to different motor.Horizontal Winding Inserting Machine is equipped with human-machine control interface, It has the characteristic of widely application, high automation, easy operation and convenient tooling change.


    Specification:

    Stator ID20~110mm
    Stator OD≤160mm
    Stator height20~150mm
    Tooling travel60mm
    Wire MaterialCopper wire/Alum wire
    Slot number range8-48 slots
    Power supply380V/ 50/60Hz 3Kw
    Weight400Kg
    Dimension1500*680*1500mm

    Operation step:

    Power on the machine

    Insert the wire by winding form

    Adjust the tooling according to different model stator

    Put stator to the tooling

    Set the stator diameter in the touch screen then select the pre-set data.

    Press "start" button.

    Machine will automatically do coil inserting.

    Take out the stator

    Application:

    This machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.

    Information needed for stator winding inserting machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Wire connection drawing
    4. Stator application
    5 Required productivity
    6 Other technical requirement

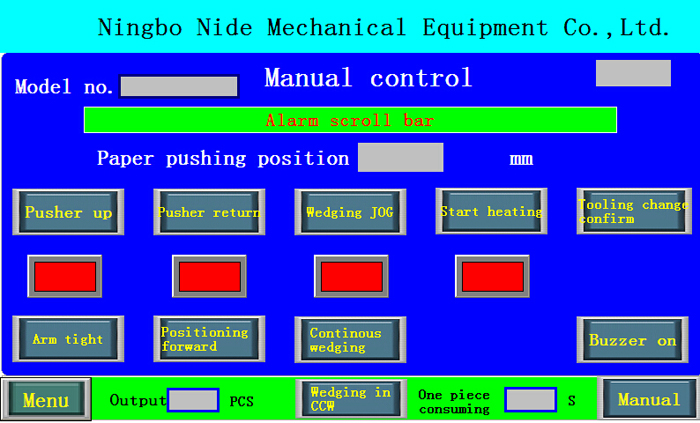

    The touch screen of this machine
