    Red Vulcanized Fiber Motor Insulation Wedge Material For Armature Coil Winding

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-JYZ-6
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 kilogram per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

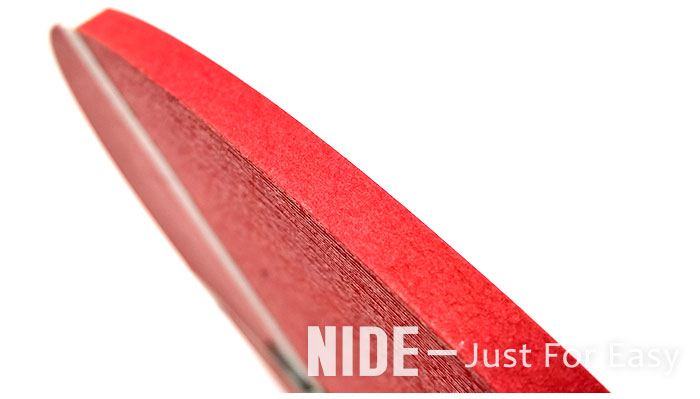

    Red Vulcanized Fiber Motor Insulation Wedge Material For Armature Coil Winding

    Red Vulcanized Fiber is made of cotton pulp, wood pulp and zinc oxide. It is conglutinated by the cementing compound under thermophilic temperature. With a hand feature and good elasticity, it shows excellent abrasive resistance, heat resistance, mechanical strength and electric strength

    Thermal class: F


    Application:

    it is widely used in slot, phase and liner insulating of motor, transformer and so on.


    ItemRaw materialRaw material weight (g)Chemical compositionChemical percentage(%)
    Vulcanized fibre paperCotton fiber80CH12O680
    Wood fiber10C6H12O510
    Dye0.36Na6Al4Si6S4H200.35
    ZnSO40.15ZnSO40.15
    H2O27.5H2O27.5
    Filler2TiO22



    Information needed for insulation material inquiry

    It will be better if customer could send us detailed drawing including below information.

    1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

    2. Insulation material dimension: width, thickness, tolerance.

    3. Insulation material thermal class: Class F, Class E, Class B, Class H

    4. Insulation material applications

    5. Required quantity: normally its weight

    6. Other technical requirement.


    We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing
