    Class H Armature Slot Insulating NMN Thermal Paper

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-JYZ-6640D
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 kilogram per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

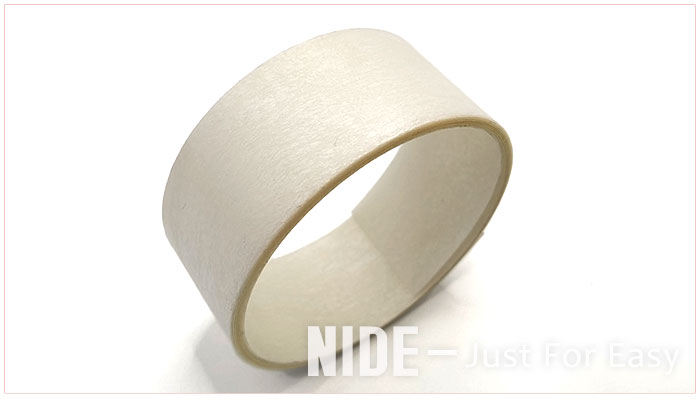

    Class H Armature Slot Insulating NMN Thermal Paper

    Class H Armature slot insulating NMN thermal paper


    6640 NMN thermal paper is a three-layer composite material made of one layer of polyester film and two Nomex paper and glued by H class resin. It shows excellent mechanical property and electrical property. it is widely used in slot, phase and liner insulating of motors.


    thermal paper specification

    Thickness0.15mm-0.47mm
    Width5mm-914mm
    Thermal classH
    Working temperature180degree
    Color

    Light yellow


    Information needed for insulation material inquiry
    It will be better if customer could send us detailed drawing including below information.
    a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
    b. Insulation material dimension: width, thickness, tolerance.
    c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
    d. Insulation material applications
    e. Required quantity: normally its weight
    f. Other technical requirement.


    We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing


    electrical insulation paper material


    About Motor component and accessories


    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
