    Fully Automatic 12 Slot BLDC Stator Winding Machine With 4 Stations

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-S4W01M
    Certification : NONE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 160 sets per year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Fully Automatic 12 Slot BLDC Stator Winding Machine With 4 Stations

    Fully Automatic 12-slot BLDC Motor Stator Needle Winding Machine With 4 Stations


    This BLDC motor stator winding machine has 4 needle winding stations , suitable for 12 slots BLDC brushless motors and inverter motors in the field of household appliances, such as inverter washing machines, inverter refrigerators, inverter vacuum cleaners, inverter air conditioners,inverter kitchen range hoods, etc. is High efficiency and Low cost are its characteristics.


    (1)Introduction:

    1.The motor stator winding machine adopts 4 stations design, it can wind four stators at the same time.

    2.Equipped with fully automatic flow conveyor, adopts an independent control system. It can automatic lifting, automatic position, and automatic stopping the stators.

    3.High efficiency and Low cost.

    4.All operating parameters can be set on the touch screen: the number of turns, the number of twist angles, and the steering are all programmable.

    5.The stator coil winder has a self-diagnostic function.


    (2)Specification:

    Product name:Full Automatic 12 Slot BLDC Stator Coil Winding Machine
    Wire Dia.:f0.13mm~f1.1mm
    Stator ID:Φ36mm~Φ60mm
    Stator OD:Φ70mm~Φ132mm
    Stator stack length:10mm~60mm
    Winding speed:50-700 r/min
    Winding method:needle winding
    Winding station:4
    Pole no:2,4,6,8
    Air pressure:0.5MPa~0.7 MPa
    Voltage:380V/50HZ ,Three-phase four-wire
    Power:26KW
    Dimension:2200mm×1260mm×2020mm
    Weight:1500kg

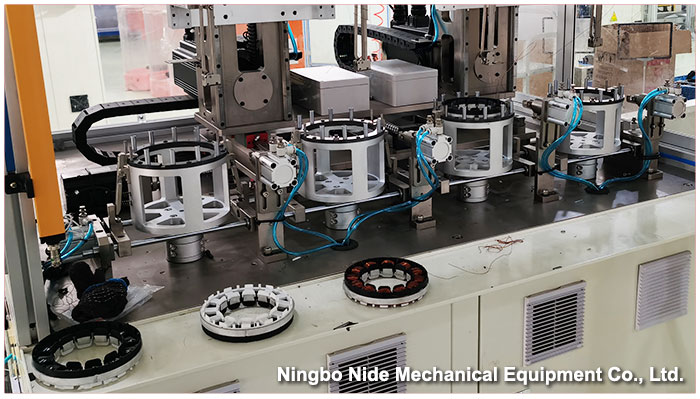

    (3)Picture show


    Fully Automatic 12 Slot BLDC Stator Winding Machine With 4 Stations


    FAQ

    1. How to confirm which motor needle winding machine model?

    Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.

    If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.


    2. How to transport the stator winding machine?

    By air or sea


    3. How to operate the motor needle winding machine?If there is related training about operating the motor manufacturing machines?

    Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.


    4. What field is your machine suitable for?

    Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
