    Fan Motor Stator Coil Shaping Machine For Motor Manufacturing

    Ask Lasest Price
    Brand Name : Nide
    Model Number : Z2XL1-110-160C
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 900 sets per year
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Fan Motor Stator Coil Shaping Machine For Motor Manufacturing

    Fan Motor Stator Coil Forming and Shaping Machine for motor manufacturing


    The stator coil forming machine is suitable for forming up the small to medium size stator coil,full of technologies and innovations that make industrial processes easy to execute.

    1. Stator coil forming machine function and characteristic

    This stator coil forming machine adopts whole hydraulic system and PCL program.

    With high technology and stable performance, this final forming machine is of highly efficiency and qualified forming.

    The machine tooling design adopts flexible principles of inner expansion.

    The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing.

    The forming process is very easy. Once the start button is pressed, machine will automatically do the forming.

    This machine can adjust the forming stack length by changing washer.

    Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

    This machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.

    2, Stator coil forming machine Application

    The stator coil final forming machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

    3. Stator coil forming machine Technical data

    Product name:Automatic motor stator coil forming machine
    Stator IDΦ20~Φ100 mm
    Stator OD≤Φ160 mm
    Stack height≤190 mm
    Displacement of cylinder20 L
    Power380V/50Hz
    Dimension(L)1200×(W)800×(H)2300 mm
    Weight( tooling included)800 kg

    4. Stator coil forming machine Picture show

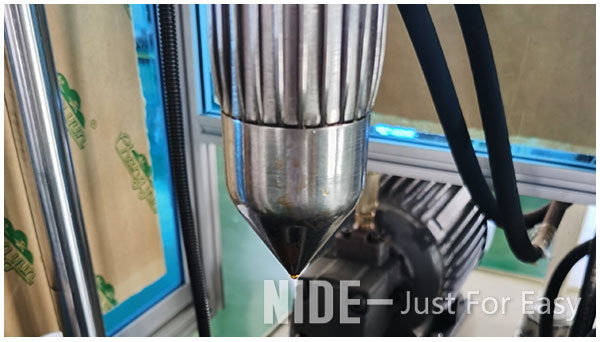

    stator coil forming machine-1.jpg

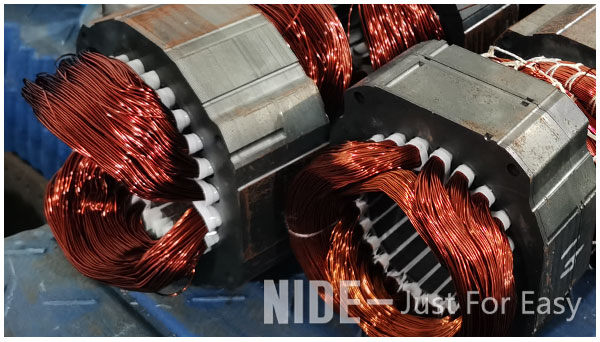

    stator coil forming machine-2.jpg

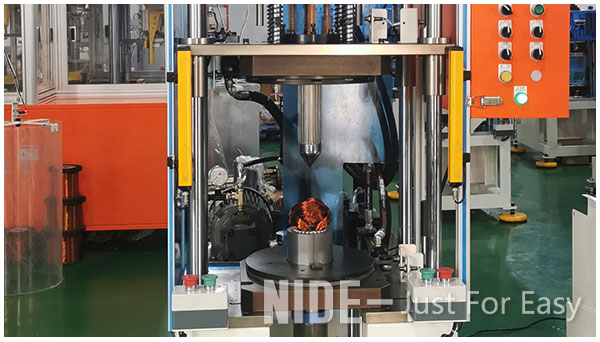

    stator coil forming machine-3.jpg

    5. The motor stator coil forming machine video:
