    Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXL2-160E
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 120 sets per year
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

    Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line

    Automatic Stator Winding Machine On Stator Prduction Assembly Line


    The stator winding machine is one machine on the induction motor stator production line.

    The automatic coil winding machine adopt two stations structure, suitable for electric motor stator coil making , able to exactly wind coils onto the forklike flywheel and easily transfer the coil to coil inserter, with high efficiency and great inserting winding effect.


    Main technical data

    Product name:Automatic stator winding machine
    Winding head:1pc
    Wire diameter:0.17~1.2mm
    Max stack OD:160mm
    Max stack height:100mm
    Winding speed:≤2000RPM
    Flier track:¢200mm
    Transfer number:2~6section
    Power supply:380V/50/60HZ 7KW
    Weight:about 1100kg
    Dimension:L1800*W1100*2200mm

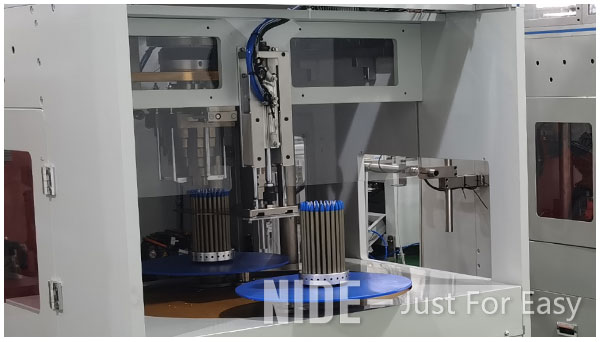

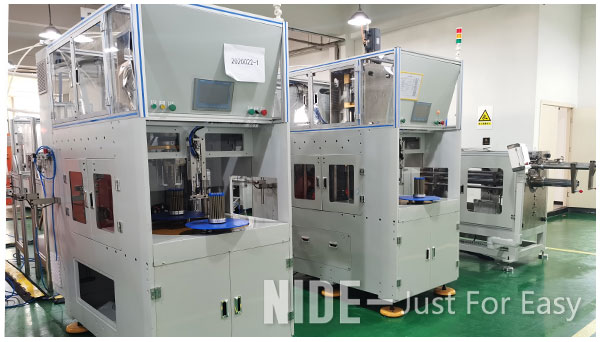

    Main picture

    stator winding machine-1.jpg

    stator coil winding machine-.jpg

    automatic stator winding machine-.jpg

    5.Stator Winding Machine Video



    Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line


    FAQ

    1. How to confirm which motor stator winding machine model?

    Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.

    If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.


    2. How to transport the stator winding machine?

    By air or sea


    3. How to operate the motor stator winding machines?If there is related training about operating the motor manufacturing machines?

    Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.


    4. What field is your machine suitable for?

    Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
