    Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor

    Ask Lasest Price
    Brand Name : Nide
    Model Number : QW1-250-300F
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 500 sets per year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor

    The motor stator coil inserting machine is suitable for Large and medium-sized motor stators

    The stators are too heavy to do loading and unloading.

    We Using a horizontal structure. The change in structure doesn't affect the final inserting quality.

    1. Stator coil inserting machine Feature

    Can be customized accordingly

    Manual loading and unloading

    After insertion, no deformation of stator, lamination, or insulation paper

    Easy for operation, No skilled operator required

    Parameter of different models can be edited, modified and displayed

    Quick and easy readjustment for other types of stator

    Copper wire and aluminium wire are both applicable

    2. Stator coil inserting machine Application

    This stator coil inserting machine is suitable for large and medium-sized electric motor, induction motor, 3 phase motor.

    3. Stator coil inserting machine Main Technical Parameter:

    Product name:Electric Motor stator coil winding inserting machine
    Stator ID:φ100-φ150
    Stator OD:≤250mm
    Stator height:80-300mm
    Appropriated wire diameter:0.2~1.2mm
    Slot number range:24~48slot
    Power:380V 50- 60HZ 3KW
    Dimension:3210*820*1600mm
    Weight:800KG

    The parameters of the stator coil inserting machine can be adjusted.

    We can customize the machine according to customer needs.

    Please feel free to contact us if you need it.

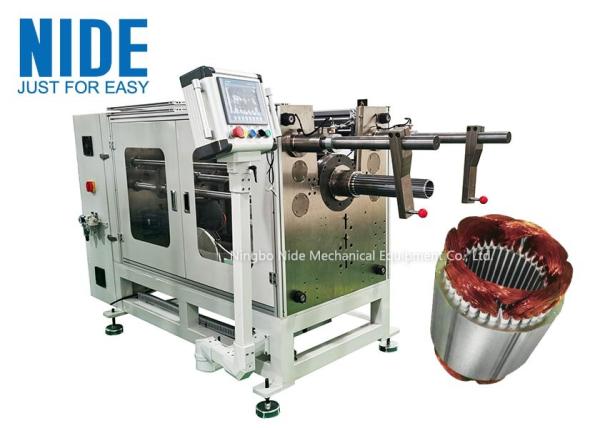

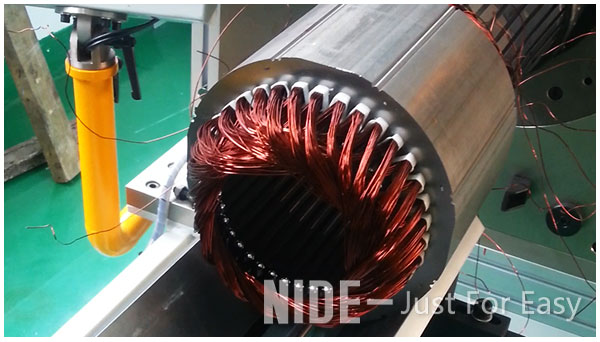

    4. Stator coil inserting machine Picture Show

    stator wire inserting machine.jpg

    stator wire winding inserting machine.jpg

    motor stator wire inserting machine.jpg


    The Horizontal Type Stator Winding Inserting Machine working video
