    Automatic Air Conditioner Motor Stator Winding Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXL2-160M
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 120 sets per year
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

    Automatic Air Conditioner Motor Stator Winding Machine

    Automatic Air Conditioner Motor Stator Winding Machine


    The stator winding machine is suitable for air conditioner motor, washing machine motor, compressor motor, fan motor, pump motor etc.


    Stator coil winding process


    Continuous/discontinuous coil winding method.

    Mature and advanced technology, reliable quality, easy operation and maintenance.

    4 stator winding working stations.

    Meet the 2poles,4poles,6poles coil winding.

    Main phase and auxiliary phase can be wound simultaneously.

    Suitable for high production capacity stator coil winding

    Auto skip, auto cutting, auto indexing could be completed at one time,

    Parameter can be set in HMI, winding tension is adjustable,


    (3)Technical parameter


    Product name:Motor stator winding machine
    Wire diameter:0.18~1.2mm
    Max stator OD:200mm
    Max stack height:160mm
    Flyer diameter:400mm
    Max RPM:1800RPM
    Air source:0.6-0.8MPa
    Winding station:4
    Winding head:2
    Power supply:380V 50/60HZ 7.5KW
    Dimension:(L)2600*(W)2200*(H)2200mm
    Weight:about 2000KG

    (4)Picture show

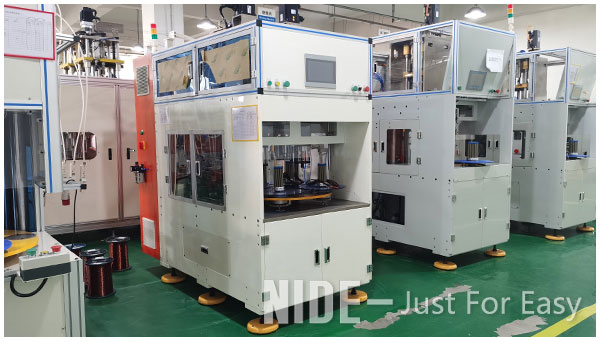

    stator winding machine-1.jpg

    motor stator winding machine-2.jpg

    Automatic Air Conditioner Motor Stator Winding Machine

    FAQ

    1. How to confirm which motor stator winding machine model?

    Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.

    If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.


    2. How to transport the stator winding machine?

    By air or sea


    3. How to operate the motor stator winding machines?If there is related training about operating the motor manufacturing machines?

    Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.


    4. What field is your machine suitable for?

    Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
