    CCC Automatic Stator Winding Machine For Electric Ac Traction Motor

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXL1-220C
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 120 sets per year
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

    CCC Automatic Stator Winding Machine For Electric Ac Traction Motor

    Stator winding machine application

    The motor stator winding machine is suitable for EV traction motor, AC and DC motor, BLDC motor and induction motor, etc. Especially for the small to medium size stator coil.We can provide professional stator winding machine equipment and winding solutions.

    Stator winding machine datas

    Product name:Automatic stator coil winding machine
    Max stack OD:160mm
    Max stack height:100mm
    Winding station:2
    Wire diameter:0.17~1.2mm
    Winding speed:≤2000RPM
    Flier track:¢200mm
    Transfer number:2~6 section
    Power supply:380V/50/60HZ 7KW
    Weight:about 1100kg
    Dimension:L1800*W1100*2200mm

    The above stator winding machine data can be adjusted according to customer needs, if you need it, please feel free to contact us.

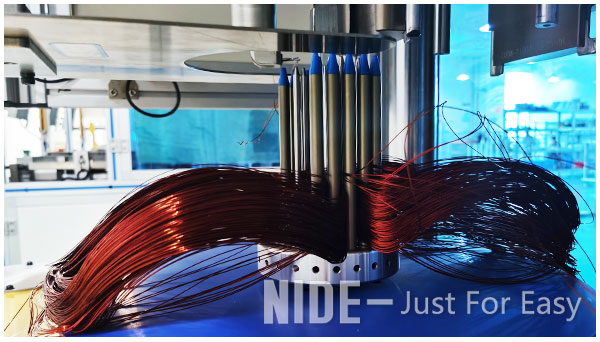

    Stator winding machine picture show

    AC motor stator winding machine.jpg




    CCC Automatic Stator Winding Machine For Electric Ac Traction Motor

    FAQ

    1. How to confirm which motor stator winding machine model?

    Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.

    If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.


    2. How to transport the stator winding machine?

    By air or sea


    3. How to operate the motor stator winding machines?If there is related training about operating the motor manufacturing machines?

    Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.


    4. What field is your machine suitable for?

    Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
