    Two Station Paper Inserting Machine Bldc Wheel Hub Motor Rotor Insulation

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-RWI03A
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 80 sets per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Two Station Paper Inserting Machine Bldc Wheel Hub Motor Rotor Insulation

    BLDC Wheel hub motor rotor paper inserting machine for electric vehicles


    The BLDC motor rotor paper inserting machine is used in wheel hub motor manufacturing.

    It is suitable for electric vehicles, electrical motorbike,new energy vehicles


    Performance and features

    The machine adopts air cylinder, PLC and touch screen control, and the paper feeding length is adjustable.

    The forming paper is fed, cut, formed, discharged, indexed and other main actions through the air cylinder and motor, and the paper is inserted into each slot of the stator.

    It can also bring its own shaping function.


    Technical parameter

    Product name:Wheel hub motor rotor paper inserting machine
    Dimension:(L)660*(W)510*(H)1779mm
    Weight:200Kg
    Air pressure:0.4-07Mpa
    Input voltage:220V
    Power:1.5KW
    Color:white
    Rotor O.D:D80-D230MM
    Stack height;30-85MM
    Paper inserting accuracy;≤0.4mm
    Cycle time;5min/54 slot(normal)

    Picture show

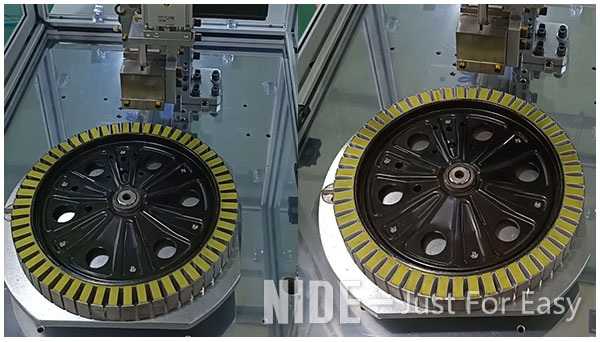

     Wheel hub motor rotor paper inserting machine.jpg

     Wheel hub motor slot paper inserting machine.jpg

     Wheel hub motor insulation paper inserting machine.jpg

     Wheel hub motor stator paper inserting machine.jpg


    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
