    Motorcycle BLDC Motor Needle Winding Machine Automatic Electric

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-SW01M
    Certification : NONE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 160 sets per year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Motorcycle BLDC Motor Needle Winding Machine Automatic Electric

    Automatic Electric Motorcycle BLDC Motor Needle Winding Machine

    Electric Motorcycle BLDC Motor Winding Machine


    The BLDC winding machine combines with the latest needle winding technology and is known for its speed and stability in producing.14 strands wire can be wound at the same time to improve the stator winding speed.


    Needle winding machine application:

    This stator needle winding machine is suitable for brushless motor manufacturing, used in electric vehicles, electric motorcycles, electric bicycles, electric balance cars and so on.


    The automatic needle motor winding machines is high-speed stator winders and is suitable for brushless /BLDC motor stator coil winding,manually loading / unloading,the machine automatically complete mold clamping,winding,wire clamping and cutting,it can achieve multi tapping (set on HMI).The stator slot NO. and turn NO. can be set on HMI.It can do multi strands wire parallel winding, and the machine has remote diagnosis function.

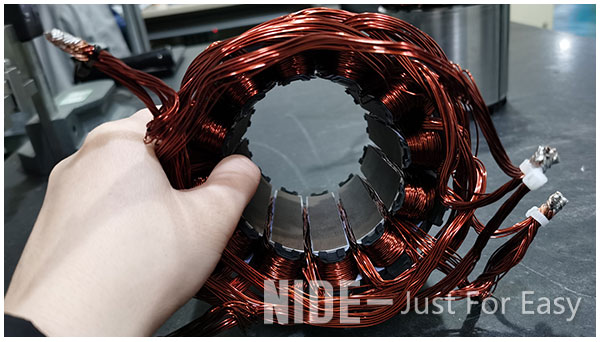

    Electric Motorcycle motor needle winding technology.jpg

    Needle Winding Machine Specification:

    Product name:BLDC Motor Stator Winding Machine For Electric Motorcycle
    Winding Method:Multi-strand needle winding
    Wire dia.:0.25-0.8 mm
    Winding speed:0-350 r/min
    Needle NO.:one
    Stator ID:50-180mm
    Stack length:10-180mm
    Stator OD:70-210mm
    Pole No.:4
    Air pressure:0.5MPa~1 MPa
    Voltage:380V/50HZ three phase four wires
    Power:9.5 KW
    Weight:About 600kg
    Dimension:1200L*750W*1900H

    Needle Winding Machine Function And Characteristics:

    1. The needle winding machine is able to high efficiency winding stator without leaving any protruding copper wires.

    2. The needle winding machine offers an optimum slot filling coefficient and the wire is arranged in a very orderly manner, not randomly like a conventional winding machine.Winding into the lamination stack slot can offers savings of up to 30% in terms of copper wire consumption.

    3. The BLDC needle winding machine winds the required number of turns directly into the stator slot.

    4. The winding machine provides free programming, so you can decide where to anchor the initial starting wire before winding, whether to run the cycle clockwise or anticlockwise, and all the necessary position changes to complete the process.

    5. Our motor winding machine have now been sold more than 50 countries around the world,Nide is the leading motor manufacturing machines supplier from China.


    Needle Winding Machine Show Details

    Electric Motorcycle motor winding machine.jpg

    Electric Motorcycle motor stator winding machine.jpg

    Electric Motorcycle motor manufacturing.jpg

    Needle Winding Machine Video


    Motorcycle BLDC Motor Needle Winding Machine Automatic Electric


    FAQ

    1. How to confirm which motor needle winding machine model?

    Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.

    If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.


    2. How to transport the stator winding machine?

    By air or sea


    3. How to operate the motor needle winding machine?If there is related training about operating the motor manufacturing machines?

    Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.


    4. What field is your machine suitable for?

    Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
