    Winding Electric Motor Spare Parts Insulating Paper Polyester Film

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-JYZ-PM
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 kilogram per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

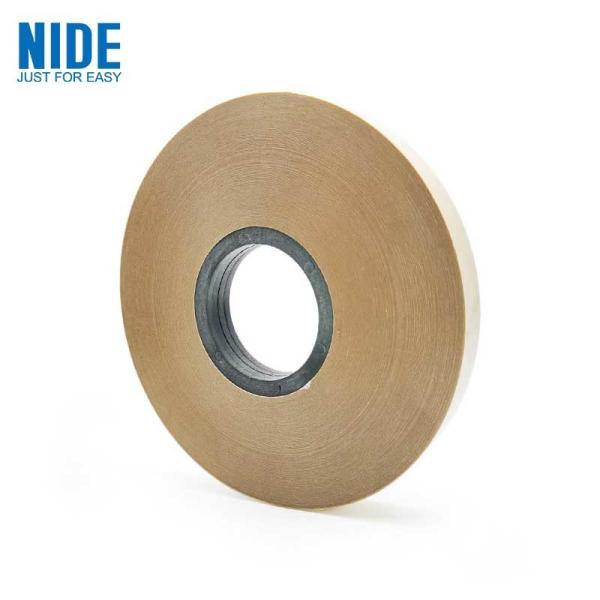

    Winding Electric Motor Spare Parts Insulating Paper Polyester Film

    High Temperature Resistance Wear Resistant Insulating Paper For Motor Insulation Winding


    Application:

    It is a two-layer composite material composed of a layer of polyester film and a layer of electrical insulating paper, bonded with F-class resin. It has good dielectric properties and is suitable for the insulation between slots and turns of small motors. Pad insulation.


    Features:

    Super dielectric property.

    Reliable heat resistance.

    High mechanical strength.

    Good impregnating performance.


    NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.


    Product parameter:

    Product namePM motor insulation paper
    MaterialOne layer Polyester film + one layer Electrical insulating paper
    GradeF grade
    ColorYellow
    Thickness0.13~0.47 (mm)
    Width5-100 (mm)
    FeaturesIt has good dielectric properties
    Heat resistance155 degrees
    CustomYes
    Packing descriptioncarton

    Product Usage

    Insulation between slots and turns of small motors. Pad insulation.

    Technical Data:

    ItemUnitParameter
    Material thicknessmm0.130.150.180.200.23
    Thickness deviationmm±0.02±0.02±0.02±0.02±0.02
    Quantitative and deviationg/m2130±13150±15185±19215±22255±26
    membrane thicknessmm0.0360.050.0750.100.125

    Tensile Strength


    Vertical


    Horizontal

    N/10mm


    N/10mm

    ≥60


    ≥40

    ≥90


    ≥80

    ≥120


    ≥105

    ≥140


    ≥120


    ≥180


    ≥150

    Elongation


    Vertical


    Horizontal

    ≥15


    ≥20

    ≥15


    ≥20

    ≥15


    ≥20

    ≥15


    ≥20

    ≥15


    ≥20

    Breakdown voltage


    Not bend

    KV≥5≥7≥8≥10≥11
    Normal cohesivenessNo stratification
    Thermal adhesion180±2℃10minNo layering, no foaming, no glue flow
    Heat resistance gradeClass F 155 degrees
    ColourBlue/Green/Red

    Picture show


    Information needed for insulation material inquiry
    It will be better if customer could send us detailed drawing including below information.
    a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
    b. Insulation material dimension: width, thickness, tolerance.
    c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
    d. Insulation material applications
    e. Required quantity: normally its weight
    f. Other technical requirement.


    We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing


    electrical insulation paper material


    About Motor component and accessories


    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
