    Automatic Stator Coil Winding Machine For Air Conditioner Motor

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : RXL1-220D
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Automatic Stator Coil Winding Machine For Air Conditioner Motor

    Automatic stator coil winding machine for air conditioner motor


    The stator coil winding machines is universal winding machine for manufacturing insertion coils for three-phase motor stator coils. It is a vertical single-head double-station automatic winding machine.


    NIDE Group provides a complete motor manufacturing production line, which is used in induction motor manufacturing, brushless motor manufacturing, new energy motor manufacturing, synchronous motor manufacturing, asynchronous motor manufacturing, etc., including stator production lines, rotor production lines, and motor assembly lines. Induction motor manufacturing line includes, slot paper inserting machine , coil Winding and inserting Machine, lacing machine, Tying machine, Twist Tie Machine, forming machine, etc.


    Coil winding machine Application

    This stator coil winding machine is suitable for air conditioner motors, washing motors, compressor motors, fan motors, generator motors, and pump motors.


    Coil winding machine Feature

    This coil winding machine is automatic tripping, automatic trimming, and automatic indexing are completed in sequence. PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction. It can be used for 2, 4 and 6 pole motor stator coil winding.


    Coil winding machine technical data

    Product name:Air conditioner motor coil winding machine
    Wire diameter:0.2~1.2mm
    Winding head:1pc
    max stack height :160mm
    max stator O.D :210MM
    Winding speed:≤2200RPM
    Max flier track:¢400mm
    Transfer number:1-7section
    Power supply:380V/50/60HZ 4.5KW
    Air pressure :0.4Mpa
    Dimension:L1800*W1100*2200mm
    Weight :about 1200kg

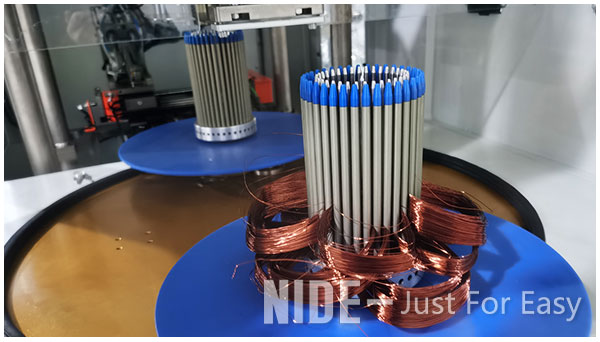

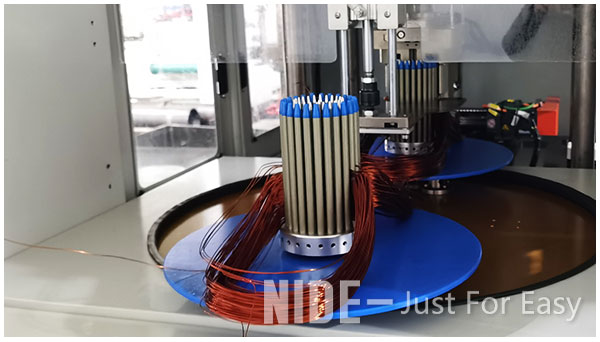

    Coil winding machine picture


    The motor stator coil winding machine video
