    8 Stations Automatic Motor Winding Machine Stator Coil Winder

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXL4-100E
    Certification : Main electric components are CE certificated.
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 800 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

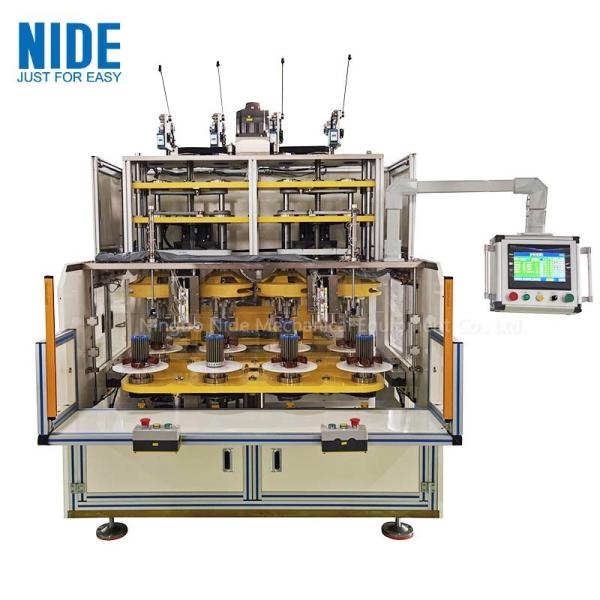

    8 Stations Automatic Motor Winding Machine Stator Coil Winder

    Automatic 8 Stations Motor Winding Machine Stator Coil Winder


    This automatic stator coil winding machine is high efficiency.

    It has 4 winding heads and 8 operation stations.

    The motor winding machine is suitable for high production capacity requirement, high slot filling rate, small slot opening motor stator coil winding. Such as Induction Motor, AC Motor, Air Conditioner Motor, Compressor Motor, Fan Motor, Washing Machine Motor.

    The stator coil winding machine automatically put the coil into transfer former orderly,

    The coil Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively; parameter could be set in human-machine interface. Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.


    Technical paramenter

    Product name:Automatic Electric Motor Winding Machine Stator Coil Winder
    Stack height:Max 65mm
    Stator OD:Max 120mm
    Wire diameter:0.19~1.2mm
    Swing diameter:220mm
    Operation station:8
    Winding head:4
    Max RPM:2500RPM
    Air source:≥0.5MPa
    Power supply:380V 50/60HZ 15KW
    Weight:about 5000KG
    Dimension:(L)2100*(W)1350*(H)2200mm

    Picture show


    With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

    Customerized service1. Customized product design and manufacturing
    2. Customized tranning
    3.Technical suggestions
    After-sales service1. Warranty Period: 12 month usually
    2. Overseas service center available

    3. Engineers available to service overseas


    NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

    NIDE has three main business divisions.

    The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

    The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.

    The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
