    Automatic New Energy Automobile Motor Winding Machine Stator Coil Winder

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXL1-220F
    Certification : Main electric components are CE certificated.
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 120 sets per year
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Automatic New Energy Automobile Motor Winding Machine Stator Coil Winder

    Automatic new energy automobile motor winding machine / stator coil winder


    This motor stator winding machine is suitable for the manufacture of new energy automobile motors.

    The mold adopts a modular design, and the winding adopts a dual-mode rotary winding mechanism with a three-axis mechanical arm wiring mechanism to achieve uniform arrangement of the windings into the wire-embedding mold.

    The wound wire package is evenly arranged and has no cross, which is convenient for wire embedding. It solves the problem of irregular winding when the multi-strand electromagnetic wire is wound in the ordinary threading machine.

    It has the function of automatic alarm for whether the U, V and W phases of the workpiece are embedded in the set one of the wrong phases and automatic identification of whether the stator is in place, that is, the incoming material foolproof function.

    It is convenient and quick to disassemble and replace during maintenance or product change.


    Motor Winding Machine Application

    The automatic motor winding machine is suitable for new energy vehicle motors, electric vehicle motors, electric motorcycle motors, electric tricycle motors, and electric rickshaw motors.


    Motor Winding Machine Main Technical Data

    Product name:Automatic new energy automobile motor winding machine
    Wire diameter:0.2~1.2mm
    Max stack height:100mm
    Max stack OD:160mm
    Winding speed:≤2500RPM
    Winding head:1pc
    Fly fork diameter:300mm
    Transfer number:1~5 section
    Power supply:380V/50/60HZ 7KW
    Weight:about 1200kg
    Dimension:L2400*W1000*2450mm

    We can customize the machine according to your needs, please feel free to contact us.

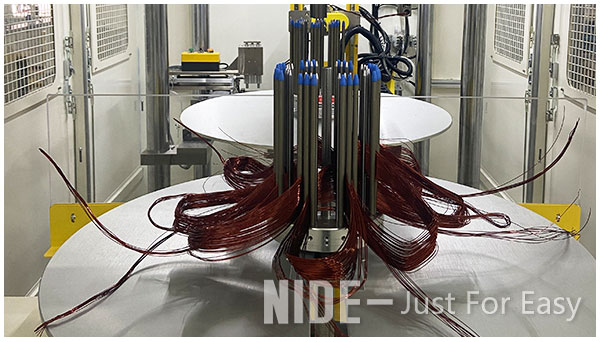

    Motor Winding Machine Picture Show
