    7P Electric Motor Commutator Armature Hook Collector Spare Parts

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-HXQ-232
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 pcs per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    7P Electric Motor Commutator Armature Hook Collector Spare Parts

    7P Electric Motor Commutator Armature Hook Collector Spare Parts


    Technical requirement of commutator:

    1. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.

    2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.

    3. Insulation resistance: 500V, more than 50MΩ


    Commutator Application

    The commutator is apply to alternator motor, automotive industry, power tools, household appliances, and other motors.


    Technical parameter of commutator:

    Product name:7P Electric Motor Commutator
    Materials:0.03% or 0.08% sliver copper or customized
    Slices :7P
    Dimension:3x8x8.8mm or Customized
    Commutator type:Hook type
    Production capacity:1000000pcs/month

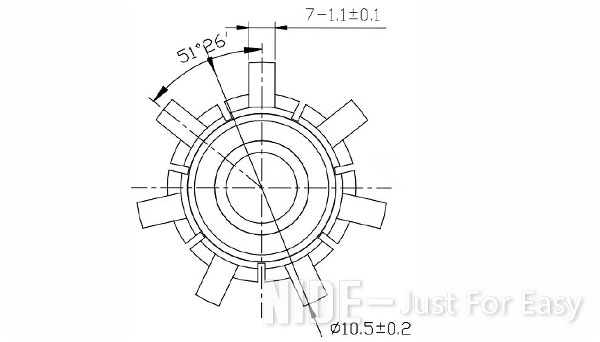

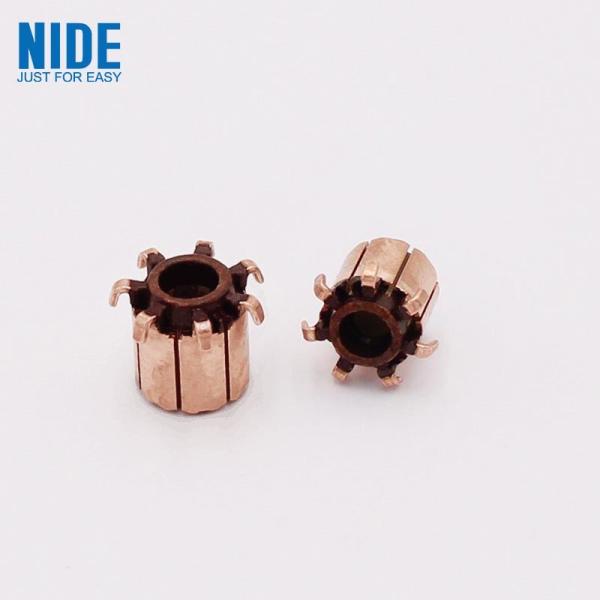

    Commutator Picture Show

    Information needed for commutator inquiry:

    It will be better if customer could send us detailed drawing including below information.

    1. Commutator dimension: OD, ID, total height, and copper height, bar number.

    2. Commutator type: hook type, raiser type or planner

    3. Copper material: Agcu/ Cu

    4. Commutator applications

    5. Required quantity

    6. Copper bush needed or not

    7. Other technical requirement.

    If possible, it will better if customer could send us samples.


    Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

    motor electric commutator


    About Motor component and accessories

    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
