    Customize 24P Tooth Copper Shell Electric Motor Commutator 10 x 28.2 x 20mm

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-HXQ-231
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 pcs per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Customize 24P Tooth Copper Shell Electric Motor Commutator 10 x 28.2 x 20mm

    Customize 24P Tooth Copper Shell Electric Motor Commutator 10x28.2x20mm


    Commutator Application


    The commutator is apply to alternator motor, automotive industry, power tools, household appliances, and other motors.


    Technical requirement of commutator:

    1. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.

    2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.

    3. Insulation resistance: 500V, more than 50MΩ


    Technical parameter of commutator:

    Product name:Copper Shell Electric Motor Commutator
    Materials:0.03% or 0.08% sliver copper or customized
    Slices :24P

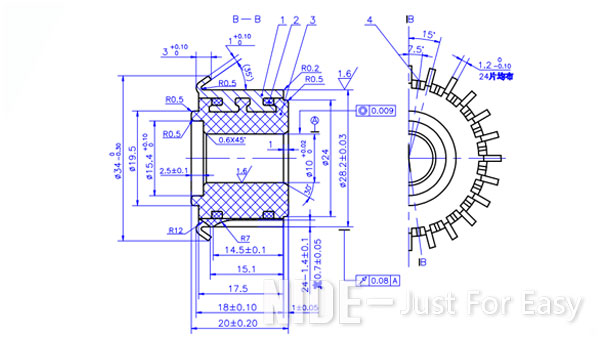

    Dimension:10x28.2x20mm or Customized
    Commutator type:Hook type
    Production capacity:1000000pcs/month

    Commutator Picture Show

    Copper Shell Electric Motor Commutator.jpg

    Motor Commutator.jpg

    Electric Motor Commutator.jpg



    Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

    motor electric commutator

    About Motor Component and Accessories:
    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

    Competitive Advantages:

    1. We have a full experience of export.
    2. We directly supply our products to many countries
    3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
