    Air Conditioner Motor Thermal Protector KW 135 Degrees For Household

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-RBHQ-59
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 pcs per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Air Conditioner Motor Thermal Protector KW 135 Degrees For Household

    Air conditioner motor thermal protector KW thermal protector 135 degrees


    Thermal protector application

    Household appliances, air conditioners, washing machines, microwave ovens, automobile motors, fire cables, motors, water pump motors, transformers, lamps, instruments, medical machinery, etc.


    Thermal protector product parameters

    Product name:Air conditioner motor KW thermal protector
    Temperature range:45-170°C, can be customized according to customer needs
    Electrical specifications:DC (DC voltage) 5V/12V/24V/72V, AC (AC voltage) 120V/250V, can be customized according to customer needs
    Current range:1-10A, can be customized according to customer needs
    Shell material:high temperature plastic shell (non-metallic), iron shell, stainless steel shell, can be customized

    The working principle and characteristics of thermal protector:

    KW thermal protector is a kind of bimetal with constant temperature as a sensitive element. When the temperature or current rises, the heat generated is transferred to the bimetal disc, and when it reaches the rated operating temperature value, it will act quickly to disconnect the contacts and cut off the circuit; when the temperature drops

    When the preset reset temperature setting value is reached, the bimetal disc will quickly recover, so that the contacts are closed and the circuit is connected.

    The thermal protector has the characteristics of small size, large contact capacity, sensitive action and long life.


    Thermal Protector Picture:

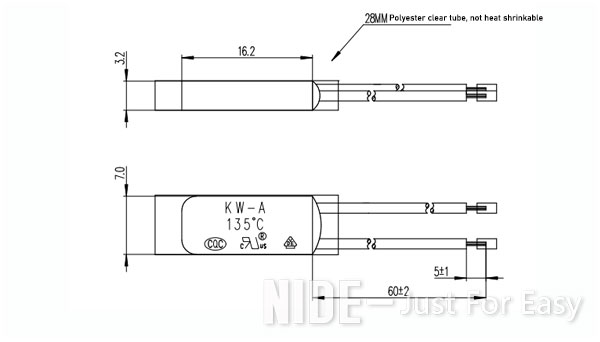

    Thermal Protector Structure:

    Air Conditioner Motor Thermal Protector KW 135 Degrees For Household

    1. Customized lead wire: Customized wire material, length and color according to customer needs

    2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

    3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
