    Automatic Motor Stator Assembly Line For New Energy EV Car

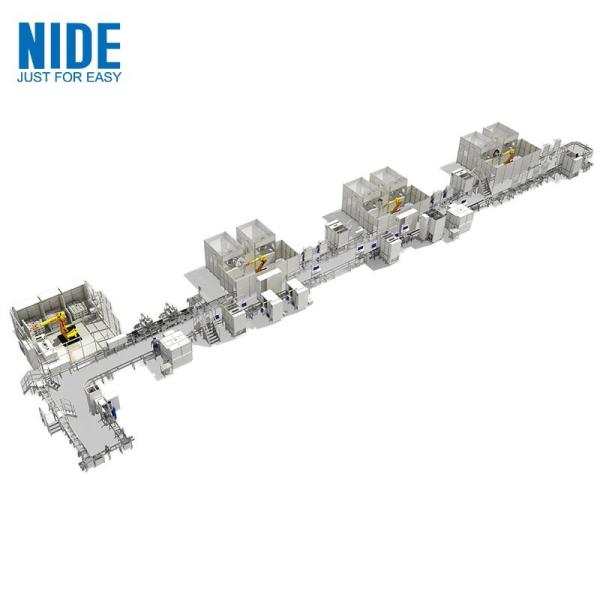

    Automatic New Energy Motor Stator Production Assembly Line For EV Car Motor


    This stator production line is mainly suitable for the production of Electric Car EV motor stators; the whole line is highly automatic and adopts advanced design schemes.

    The New Energy Motor Stator Production Line integrates slot insulation paper inserting, laser marking, coil winding and inserting, pre-forming, phase paper inserting, Star spot welding, middle forming, double-sided lacing, final forming, terminal welding, stator testing, NG rework, stator unloading functions.

    This EV motor production line is a new stator production line, which is intellectualized, automatic and informational in one. It features time changing time for whole line within 2 hours.


    Application

    This stator production assembly line is suitable for New Energy Vehicle Motor Manufacturing.


    Basic Specification:

    -Stator O.D.:Φ150mm-Φ250mm
    -Stator I.D.:Φ90mm-Φ190mm
    -Stator Stack Length:60mm-160mm
    -Slot Number:36-72
    -Slot opening width:≥1.6mm


    Production Process

    Manually load the stator core to paper inserting machine via cantilever

    Manually load the stator coil to pallet after inserting

    Print QR code on stator terminal end/arc side

    Insert wire coil into stator core

    Manually sort wires from third phase

    Manually sort wires from third phase and install tubes

    Pre-forming for terminal ends

    Manually insert the phase insulation paper

    Manually sort wires

    Insert copper tube and weld with star-point

    Automatic middle-forming

    Automatic double-sides lacing

    Automatic final-forming

    Automatic slot end paper expanding

    Manually sort and cut wires, install terminals, cut pre-lacing Nylon type; Automatic weld terminals

    Manually stator eye testing and then loose pallet clamping block

    Test for stator voltage, phase sequence, resistance, and etc.


    Stator core delivery

    Front stator double-speed flow Chain

    Back stator double-speed flow Chain


    Technical Proposal

    Cycle time: ≤170 sec/pc

    Tooling changing time for whole line within 2 hours (needs workers within 10 persons)

    Equipped with MES to realize production process traceability and electric boards for whole production lines and equipped working stations.

    100% for reliability of testing system and online inspection rate for key parameter
