    Automatic Servo Motor Production Line For Stator Manufacturing

    Servo Motor Stator Automatic Manufacturing Line-Motor Production Line


    Automatic Servo Stator Manufacturing Production Line

    This automatic stator production line is suitable for servo motor stator manufacturing. This line includes wedge inserting machine, winding and inserting combination machine, four-station pre-forming and expansion machine, middle forming machine, double-sides lacing machine, final forming machine, slot expanding machine, KUKA manipulator, double-speed chain, belt line, circular plate chain line, working table and other machines.


    Basic Specification

    -Product:Automatic Servo Stator Manufacturing Production Line
    -Stator O.D.:≤140
    -Stator I.D.:≤90
    -Stator Stack length:30-140
    -Wire size:0.3-0.9
    -Slot Number:18-48
    -Size:8500*9000

    Production Process

    Manually loading→ Paper inserting→ Coil Inserting for primary→ Expanding→ Manually wire sorting→ Coil inserting for secondary→ Expanding→ Manually wire sorting→ Coil inserting for third phase→ End pre-forming→ Manually putting phase paper→ Manually lead wire welding→ Pre-lacing lead wires→ Middle forming→ Lacing→ Final Forming→ Manually unloading


    Technical Proposal

    Cycle time for whole line: Within 240 sec/pc

    The machines are equipped with following designs:

    -Servo drive

    -Fast-to-change tooling, with convenience and efficiency

    -Complete and reasonable automatic error self-diagnosis function

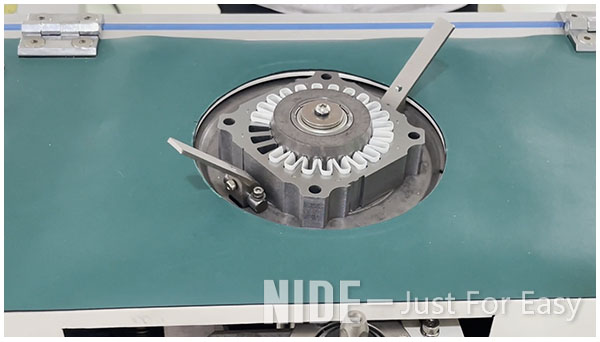

    Servo Motor Stator Line Detail

    Servo Motor Stator Automatic Manufacturing Line-1.jpg

    Servo Motor Stator Production Line.jpg

    Servo Motor Stator Line Video


    With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries. Among the customers, many of them are the world-renown companies.


    Customerized service1. Customized product design and manufacturing
    2. Customized tranning
    3.Technical suggestions
    After-sales service1. Warranty Period: 12 month usually
    2. Overseas service center available
    3. Engineers available to service overseas
