    Electrical Motor Insulation Material Slot Coil Winding Sheet Film

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-JYZ-30
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 kilogram per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Electrical Motor Insulation Material Slot Coil Winding Sheet Film

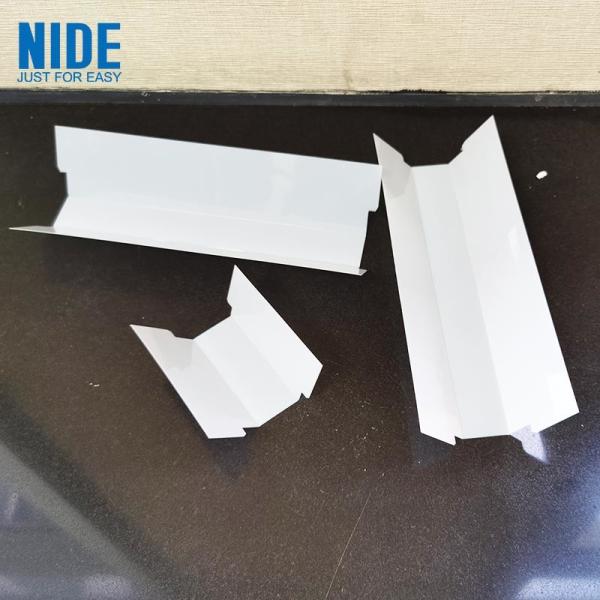

    Electrical motor slot coil winding insulation sheet and insulation film

    1.Product Introduction


    The DMD insulating paper is a three-layer electrical soft composite insulating paper composed of two layers of high-density polyester fiber non-woven fabrics, and a layer of high-melting point electrical insulating polyester film in the middle.


    2.Product Parameter (Specification)

    Thickness0.13mm-0.47mm
    Width5mm-914mm
    Thermal classB
    Working temperature130degree
    ColorWhite

    3.Product Feature And Application

    DMD polyester film polyester fiber non-woven soft composite material heat resistance class B class F (DMD) is a three-layer soft composite insulation material, made of polyester non-woven fabric, polyester film, poly It is composed of ester non-woven fabric (DMD). The adhesive used is acid-free, heat-resistant, and has good mechanical and electrical properties. Polyester non-woven fabric has adsorption capacity and can absorb resin when impregnated. Used in low-voltage motors Inter-slot and inter-phase insulation, or used as inter-layer insulation in transformers, the material has high stiffness and is suitable for mechanical off-line processes.

    Information needed for insulation material inquiry
    It will be better if customer could send us detailed drawing including below information.
    a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
    b. Insulation material dimension: width, thickness, tolerance.
    c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
    d. Insulation material applications
    e. Required quantity: normally its weight
    f. Other technical requirement.


    We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing


    electrical insulation paper material


    About Motor component and accessories


    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
