    Automatic BLDC Wheel Hub Motor Winding Machine For Electric Motorcycle

    Automatic BLDC Wheel Hub Motor Winding Machine For Electric Motorcycle

    The BLDC wheel hub motor winding machine has 2 motor winding stations. Suitable for Electric Bicycles /Ebike, Electric Motorcycles, Electric Tricycle, Electric Skateboard, Electric Buses, Electric Rickshaw,Electric Scooters. Also Wheel motors are applied in industry, e.g. driving wheels that are part of assembly lines. Although brushless DC motor technology is more expensive, most are more efficient and longer-lasting than brushed motor systems.


    Adopts air cylinder, PLC and touch screen control to realize the main functions of positioning, indexing, flying fork winding, motor cable winding, automatic front thread trimming and other functions. It can store hundreds of parameters and switch arbitrarily.

    Hub motor winding machine video


    NIDE can supply a variety of brushless hub motor manufacturing solutions. The wheel hub motor (also called wheel motor, wheel hub drive, hub motor or in-wheel motor) is an electric motor that is incorporated into the hub of a wheel and drives it directly.


    Technical Parameters

    Product name:Automatic BLDC Electric Wheel Hub Motor Winding Machine
    Stator OD:100-300mm (different OD needs to change different tooling)
    Wire dia:0.5-1.0mm (customized)
    Winding method:flyer coil winding
    Winding station:2
    Stator stack:30-85mm (The tooling can be used for stacked stators within 5mm. If the random mold is designed for 30mm, it can be used to 35mm stators, If you make a stator of more than 35mm, you need to redo 2 pieces of guard plates, 2 sets of I-shaped blocks, spare parts)
    Cycle time:winding 0.9X40 turns 54 slots 15 mins.
    Primary qualification rate≥98%(Stator stack thickness error is less than 0.2mm)
    Air pressure:0.4-07Mpa
    Input voltage:220V
    Input power:5KW
    Weight:500Kg
    Dimension900X2100X1700 mm

    electric motorcycle Motor Winding Machine.jpg

    Application

    The BLDC wheel hub motor coil winder is suitable for Electric Wheel Hub Motor, Brushless DC Wheel Hub Motor, Geared Motor, Direct Motor, Cassette Motor, Ebike Motor, Scooter Motor, Electric Motorcycle Motor, Electric Auto Car Motor, Electric Vehicle Motor (EVS),Electric tricycle motor, Electric rickshaw motor, Electric Bike Motor, etc..


    Performance and features

    1. Mold tooling change within 15 minutes.

    2. Fully automatic winding of the stator wire package, the wire head and tail are automatically trimmed by the machine, and the material is manually loaded and unloaded.

    3. The joint design of the equipment parts adopts the card slot design, which can be quickly positioned after disassembly.

    4. The sliding parts are designed with standard linear guide rails and card slots, which will not move after long-term use.

    5. The flyer spindle of the equipment is within 0.03mm when winding.

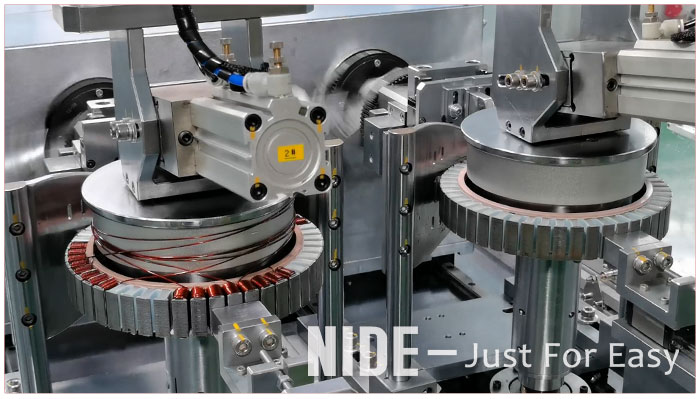

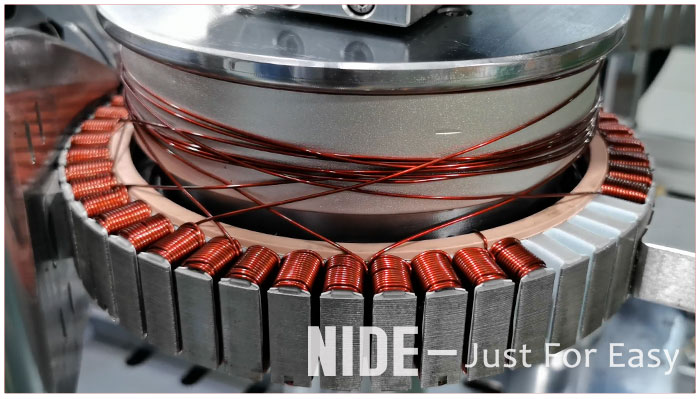

    Hub motor winding machine picture
