    OEM Vulcanized Paper Insulation Red Steel Paper Gasket

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-JYZ-1003
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 kilogram per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    OEM Vulcanized Paper Insulation Red Steel Paper Gasket

    OEM Vulcanized Paper Insulation Red Steel Paper Gasket


    Red steel paper gasket combines the good insulation properties of wood pulp insulating paper and the good dielectric, mechanical toughness, flexibility and resilience of polyester film, and has better thermal stability. Widely applicable to electrical equipment, suitable for slot-to-slot insulation, turn-to-turn insulation and liner insulation of Class B motors.


    Red steel paper gasket insulation material is a kind of soft composite material, which is a two-layer insulating paper made of polyester film coated with adhesive and wood pulp insulating paper on one side.


    Product:Vulcanized Paper Insulation Red Steel Paper Gasket Ring
    Outer diameter:21.7, customized
    Inner diameter:14, customized
    Height:0.5, customized
    Material:Red fast paper t=0.5
    Insulation class:Class B, customized;
    Temperature resistance:130℃, customized
    Appearance:Uniform surface, no fuzz, and no defects such as bubbles, wrinkles and blemishes
    Requirements:RoHS Compliant

    Features of red steel paper gasket insulating paper

    The red steel paper gasket insulation material has the function of insulation and anti-interference, high electrical insulation, mechanical strength, softness and elasticity; the red fast paper is especially resistant to acid and alkali corrosion, tear resistance and wear resistance. Moisture insensitive, non-toxic and flame-resistant.

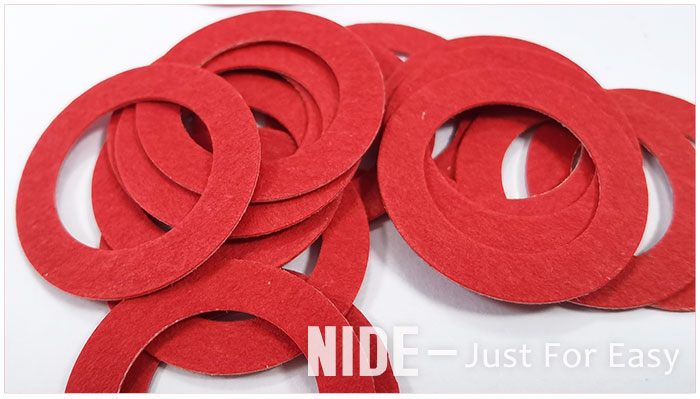

    Red Steel Paper Gasket Picture


    Information needed for insulation material inquiry
    It will be better if customer could send us detailed drawing including below information.
    a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
    b. Insulation material dimension: width, thickness, tolerance.
    c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
    d. Insulation material applications
    e. Required quantity: normally its weight
    f. Other technical requirement.

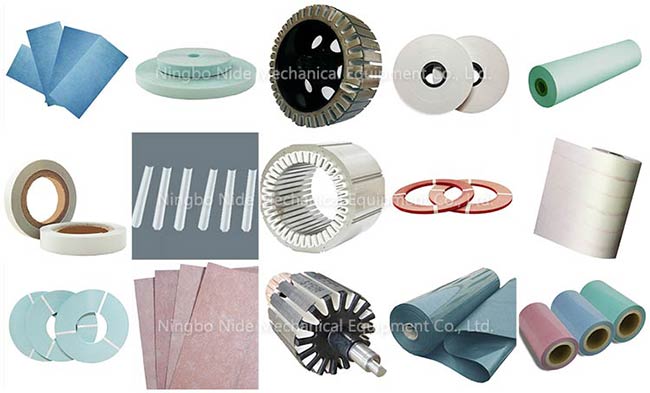

    We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing

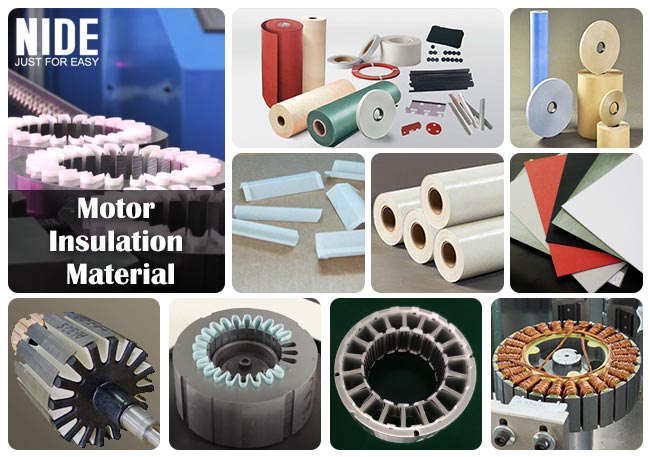

    electrical insulation paper material


    About Motor component and accessories


    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
