    BR-T Thermal Protector 50 150 Degree Overload Bimetal Thermal Protection

    BR-T Thermal Protector 50 150 Degree Overload Bimetal Thermal Protection


    BR-T Thermal Protector Structure

    BR-T series thermal protector is a kind heating protector. At the heart of the device is a bimetal snap-action disc. When the temperature of this disc reaches its pre- calibrated temperature, it snaps open, resulting in an open circuit. This temperature is reached during a fault condition caused by an increase in ambient temperature. After the device breaks the circuit, the system cools and automatically resets allowing power to be restored to the circuit.


    BR-T Thermal Protector Applications

    BR-T/BR- S series thermal protectors are featured for small size, sensitiveness, perfect air-tightness performance, accuracy. It is mainly used for fractional 0.5hp motor or less, transformers, rectifiers, battery packs, and other household appliances.


    BR-T Thermal Protector Open temperature:

    50~ 150 with tolerance土5°C; in 5°C increment.

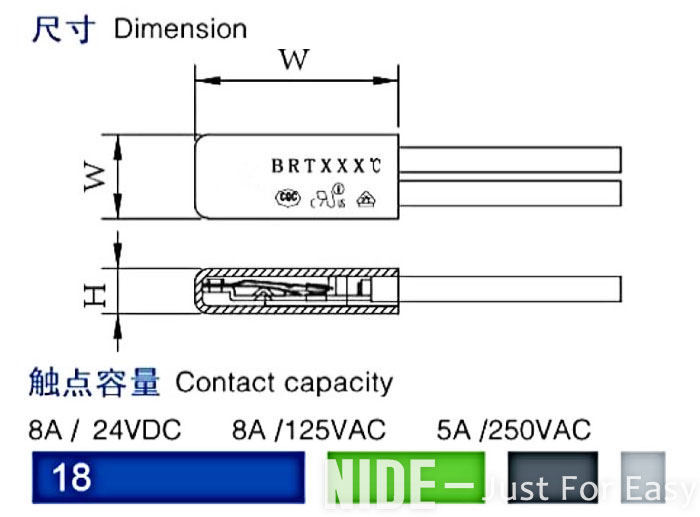

    Parameter

    ClassificationLWHRemark
    BR-T XXX166.23Metal Case, insulation sleeve
    BR-T XXX H16.56.83.6Metal Case, insulation sleeve
    BR-S XXX166.53.4PBT Plastic Case

    Customized Thermal Protector :

    BR-T Thermal Protector 50 150 Degree Overload Bimetal Thermal Protection

    1. Customized lead wire: Customized wire material, length and color according to customer needs

    2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

    3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
