    6021 Motor Insulating Paper Milky White PET Insulating Film Slot Paper

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-JYZ-6021A
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 kilogram per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

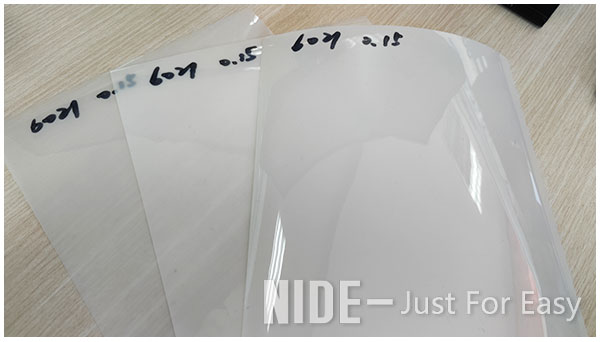

    6021 Motor Insulating Paper Milky White PET Insulating Film Slot Paper

    6021 Motor insulating paper milky white PET insulating film slot paper


    6021 polyester film for electrical insulation is an opaque film with good dielectric properties and high physical and mechanical properties. It is widely used in medium-sized slot insulation, turn-to-turn insulation, and can also be used in the production of soft composite materials. It is suitable for electrical insulation industry, such as slot insulation, turn-to-turn insulation of motors, coil and cable wrapping insulation, etc. It can also be used to produce insulation soft composite materials.
    6021 Motor Insulating Paper Parameter
    Product name6021 Motor insulating paper
    Color:Milky White
    Thickness:0.125~0.5mm
    Custom processing:Yes
    GradeE
    FeaturesInsulation,Excellent heat resistance

    6021 Motor Insulating Paper Composition
    6021 polyester film is made of polyethylene terephthalate (PET) by casting and balanced biaxial orientation.
    The heat resistance grade of 6021 polyester film is E (120℃). It is an opaque film with good transparency and flexibility, high mechanical strength and dielectric properties, uniform thickness and glossy surface.
    6021 Motor Insulating Paper Application
    6021 Motor polyester film, this product is widely used in motors, packaging, printing, clothing and electronics. And for a wide range of users to provide slitting tape, block tape and processing and forming business. Product prices are divided according to quality grades and thicknesses.
    During the cutting and use of the product, the edge should be prevented from cracks, and surface scratches and pollution such as oil and dust should be avoided.

    Information needed for insulation material inquiry
    It will be better if customer could send us detailed drawing including below information.
    a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
    b. Insulation material dimension: width, thickness, tolerance.
    c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
    d. Insulation material applications
    e. Required quantity: normally its weight
    f. Other technical requirement.


    We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing


    electrical insulation paper material


    About Motor component and accessories


    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
