    Electric Motorcycles Wheel Motor Stator Winding Machine For New Energy Vehicles

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-R2SW01
    Certification : None
    Price : Negotiable
    Payment Terms : TT/ LC
    Supply Ability : 500 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Electric Motorcycles Wheel Motor Stator Winding Machine For New Energy Vehicles

    Automatic electric motorcycles wheel motor stator winding machine for new energy vehicles and battery cars


    (1) Application

    This wheel motor winding machine is used for the wheel hub motor stator coil winding ,and the brushless stator and the outer rotor coil winding. The stator winding machine is suitable for electric vehicles, battery cars, electric motorcycles, twisting cars, balance cars, new energy vehicles, etc.


    automatic balance cars motor stator winding machine


    (2) Features and features

    The automatic wheel stator winding machine It could diagnose the fault, count the output, etc.is designed for the wheel motor coil winding. It equips with the servo control system.

    The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed.

    The machine adopts double stations winding design.

    It is easy to operate and maintain .

    It has high production efficiency and reduced labor costs.

    The stator winding machine has remote diagnostics function.


    (3) Technical parameter:

    Product name:Automatic wheel motor stator winding machine
    Wire dia :0.2~1.3mm
    Stator ID :10~100mm
    Stator O.D :80-310mm
    Stator stack lenght :10-50mm
    Max. winding speed :500RPM
    Winding station:2
    Parallel winding wire number :1~8
    Voltage :three pahse 380V 50HZ , single pahse 220V 50HZ
    Air pressure :0.4-0.7 MPA
    Total power :<7KW
    Weight :about 750KG
    Dimension :1100x1000x1700mm

    (4) Picture show:

    The wheel motor stator winding machine with double winding stations

    wheel motor winding machine stator coil winding machine

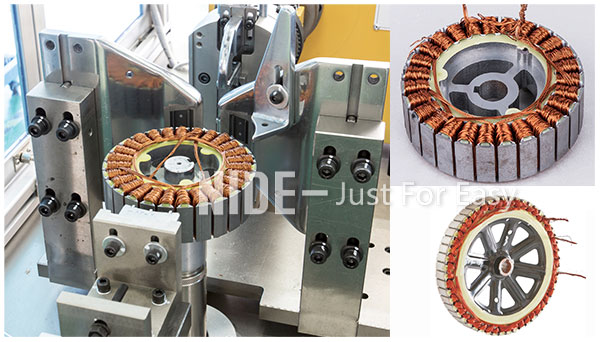

    The wheel motor stator winding station and stator after coil winding

    new energy vehicles electric vehicles motor winding machine

    The wheel motor stator winding machine video https://youtu.be/lyO92w45O4w
