    Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-JYZ-6641
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 kilogram per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Motor Winding Electrical Insulation Paper 6641 DMD / Mylar Polyester Film Paper

    Introduction

    The 6641 DMD mylar polyester film electrical insulation material is a three-layer composite material made of one layer of polyester film and two electrical polyester fibre nonwovens and glued by F class resin. With good mechanical property and electrical property, polyester non-woven fabric has good adsorption capacity and can absorb resin during impregnation.


    6641 DMD insulation paper electrical insulation material


    Application

    It is widely used in slot, phase and liner insulating of motors,Interlayer insulation in the transformer. It is also widely used in automatic coil inserting machine for wedge inserting.


    Specification

    Thickness : 0.13mm-0.50mm

    Sheet: 1000*980mm

    Coil: maximum width 1000mm

    Strip: minimum width 5mm

    Thermal class : F

    Working temperature: 180 degree

    Color: Blue

    Normal Bond strength: no delamination

    Bond strength at 180±2°C: No delamination, no blister, no adhesive flow


    Package

    Inner packaging: polyethylene film

    Outer packaging: carton or woven bag


    Storage conditions

    Can be stored indefinitely under normal conditions (20°C, 50% r.h.)

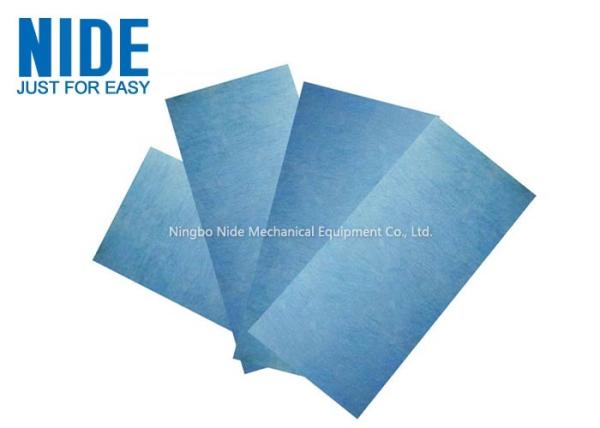

    Picture show

    motor winding insulation paper


    Information needed for insulation material inquiry

    It will be better if customer could send us detailed drawing including below information.

    1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET,Red Vulcanized Fiber)

    2. Insulation material dimension: width, thickness, tolerance.

    3. Insulation material thermal class: Class F, Class E, Class B, Class H

    4. Insulation material applications

    5. Required quantity: normally its weight

    6. Other technical requirement.


    We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing
