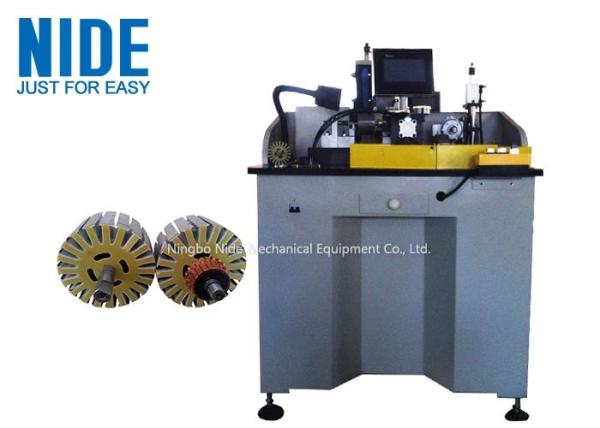

    400KG Armature Commutator Turning Machine With Rotary Brushing Station

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-WGK-2XB
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 60 sets per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    400KG Armature Commutator Turning Machine With Rotary Brushing Station

    Automatic electric motor armature commutator finish turning Machine with rotor burshing station


    The DC motor armature finish turning machine is use for armature commutator turning and it can turn and brush the rotor simultaneously.


    (1) Introduction and features
    Manual load/unload of armature into the turning and brushing stations.
    Armature commutator turning and brushing the rotor at the same time
    Servo motor drive controls armature rotation.
    Robust, vibration-free base and tooling mounting surfaces.
    Complete control of belt speed for correct cutting surface speed.
    Supporting Clockwise or counterclockwise rotation of armature during cutting.
    High precision
    Easy access for maintenance.
    Low cost
    Easy to operate


    (2) Technical data:

    1. Voltage240V+/- 10%
    2. Frequency50Hz
    3. Motor power

    750W(AOB71222,
    Three phase 240 V, connection)

    4. Frequency converting power750W(2pole,single phase 240v)
    5. ControlPLC System
    6. Belt press time0.1s
    7. Cutting timeprogrammable
    8. Cutting speedpneumatic adjustable
    9. Speed frequency range0-60Hz
    10. Air pressure0.5-0.7Mpa
    11. Armature shaft diameter rangef3-f16mm (according to customers’ requirement)
    12. Armature diameter range71~148mm
    13. Shaft length range290~490mm
    14. Cutter linear speed50m-1000m/Min
    15. Weight each cutting0.02-0.2mm
    16. Commutator Surface roughness0.25micron
    17. Rotor Surface roughness0.4micron
    18. Concentricity≤0.005mm
    19. Max cutting length100mm
    20. Machine dimension950mm×650mm×950mm
    21. Weight400Kgs


    (3) Application
    The armature finish turning machine is used for DC electric motor armature commutator surface finishing.


    (4) Picture show

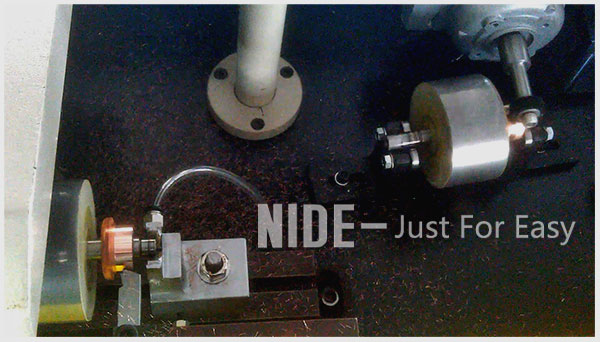

    1. The armature commutator turning process

    2. Turning and brushing the rotor at the same time

    3. Armature show after finish turning and brushing
