    Large Water Pump Stator Winding Inserting Machine

    Automatic deep water pump motor stator coil inserting and expanding machine for submersible pump motor


    1. Application

    The automatic motor stator coil inserting and expanding machine is suitbale for medium and large stator which needs to do coil inserting several time, such as water pump motor, submersible pump motor, deep water pump motor.


    2. Introduction and features

    This machine integrates with stator coil inserting machine and coil expanding,has function of auto wedge feeding, cutting and forming, and insert into stator slot together with coil , featured by wide application range, high automation,easy operation, easy tooling change etc.

    After coil inserting process, it wil transfer to expanding station to do coil expanding. It will circulate the winding inserting and expanding process till it is finished.

    Adopt AC servo motor system and servo wedge cutting system to to control the wire inserting and wedge inserting.

    Pneumatic system and hydraulic system to control the expanding process.

    PLC control.

    The parameter can be displayed and set in the HMI.


    3. Technical data

    Product nameAutomatic coil inserting and expanding machine
    Stator OD≤300mm
    Stator Hight≤300mm
    Stator ID≤200mm
    Wire range0.18~1.2mm
    Displacement of cylinder50L/min
    Power supply380V 50/60HZ 10KW
    Weight2000KG
    Dimension3600mmx1670mmx1700mm

    4. Picture show

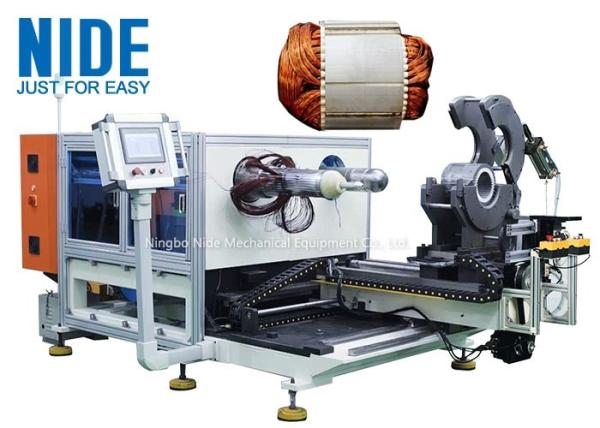

    1.The coil inserting and expanding machine

    auotmatic stator coil inserting and expanding machine


    2.The stator coil inserting process

    auotmatic coil inserting and expanding machine

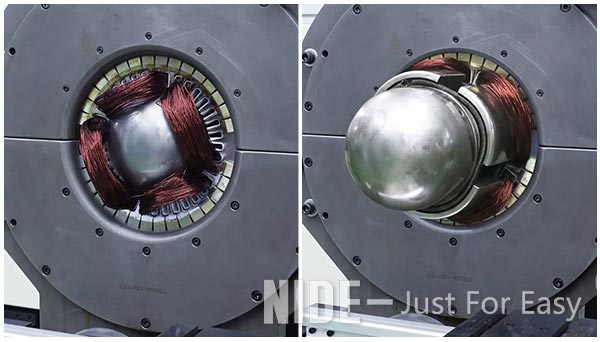

    3.The stator coil expanding process

    auotmatic motor stator coil inserting and expanding machine
