    Semi Automatic DC Motor Coil Inserting Machine Single Working Station

    Ask Lasest Price
    Brand Name : Nide
    Model Number : QX1-100-150
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Semi Automatic DC Motor Coil Inserting Machine Single Working Station

    Semi automatic DC motor stator servo coil inserting equipment coil insertion machine


    The DC motor stator coil inserting machine can insert coil and wedge simultaneously,both copper wire and aluminium wire are applicable.


    (1) Main technical data

    Stator OD:Max. 160mm
    Stator ID:30~100mm
    Stator stack length:Max.150mm
    Tooling traveling distance:Max.70mm
    Suitable wire material:copper/aluminium wire
    Max. slot filling rate:80%
    Slot number:8~48slots
    Power:380V/50/60HZ 3Kw
    Machine weight:about 850kg
    Machine dimension:L1800*W650*1700mm


    (2) Machine main function and characteristic

    The machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system , and wedge insertion by variable frequency motor.

    It is controlled by HMI, and machine can diagnose breakdown automatically.

    This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)

    The wedge feeding is by stepping motor, feeding length, cutting, forming, inserting slot number could be set.

    Both copper wire and aluminium wire are appliable.

    Production capacity ≤25s/set (exclude the man-hours for auxiliary work)

    Primary qualification rate for copper wire ≥98.5%, after rework, the rate ≥99.5%

    Both wedging system and feeding system have pre-decelerating function.

    This machine has alarm for material runout.

    Wire pushing height and stop time can be set in the HIM interface.

    This machine has fixed foot and removable wheel.

    Wedge should not be damaged, no burr in the surface, no movement or slide.

    Slot paper should not be damaged, no movement or slide. Copper wire should not be pull away from the paper.

    The stator should not be deformation or stator lamination should not be upward.


    (3) Application

    The stator coil inserting machine is suitable for universal motor and DC motor, is widely used in blenders, vacuum cleaners, and hair dryers, power tools, drills, sanders, circular and jig saws, domestic washing machines, Starter motor,etc.


    (4) Picture show

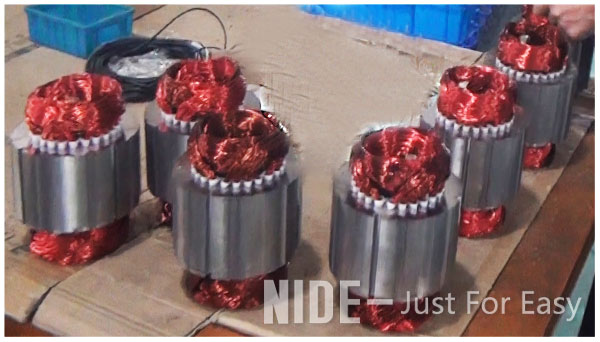

    universal motor coil inserting mahine

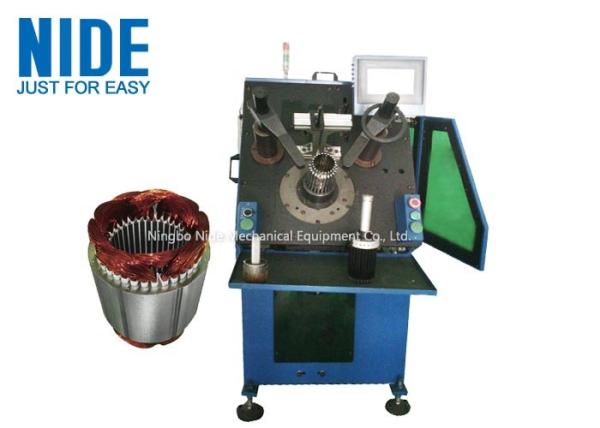

    DC motor coil inserting machine


    (5) The DC motor servo stator coil inserting machine video

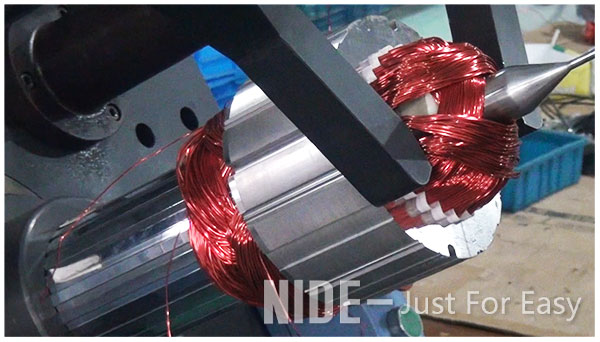

    stator coil inserting machine
