    4 Stations Coil Lacer Machine Production Assembly Line 380V Voltage For Household Appliance

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : BXSIIL4-160-160B
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 600 sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    4 Stations Coil Lacer Machine Production Assembly Line 380V Voltage For Household Appliance

    Full automatic Induction Motor Stator Wire Lace Machine production assembly line / 4 stations Coil Lacer Machine


    (1) Application

    The automatic stations stator coil binding lacing machine production assembly line has 4 working stations .And it greatly improved production efficiency in the electric motor manufacturing. It is suitable for air conditioner motor,pump motor, compression motor, fan motor, washing machine motor and generator motor ,etc.

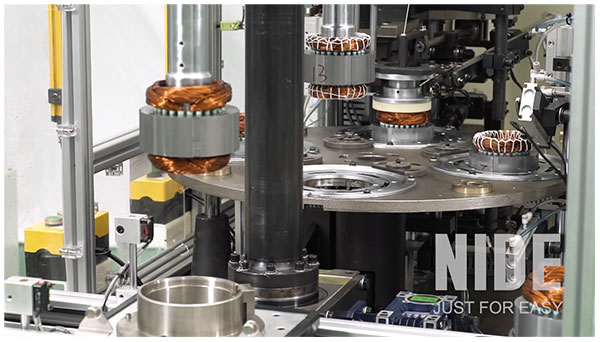

    Full automatic Induction Motor Stator Wire Lace Machine production assembly line-1


    (2) Technical data

    Product name:Fully automatic induction motor stator coil binding machine production assembly line
    Stator ID:≤100mm
    Stator OD:φ40-φ160mm
    Stack Height:30-160mm
    Height of Coil:≤65mm
    Pitch time:≤14s/pc(24 slots)
    Air Pressure:0.4-0.6MPa
    voltage:380V 50/60Hz
    Power supply:6Kw
    Dimension:(L)2000×(W)1100×(H)1900mm
    Weight:about 1500Kg

    (3) Machine main function and characteristic

    1. This motor stator coil lacing and binding machine production assembly line adopts turntable plates structure with four working station,

    2. Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing.

    3. With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.

    4. It is equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and etc.

    5. Overhang winding adopts twin needle lacing simultaneously. Needle transposition, hooking and stator indexing are controlled by five spindle servo system.

    6. The stator coil lacing machine production line is suitable for mass production and greatly save time and labor cost.


    (4) Picture show

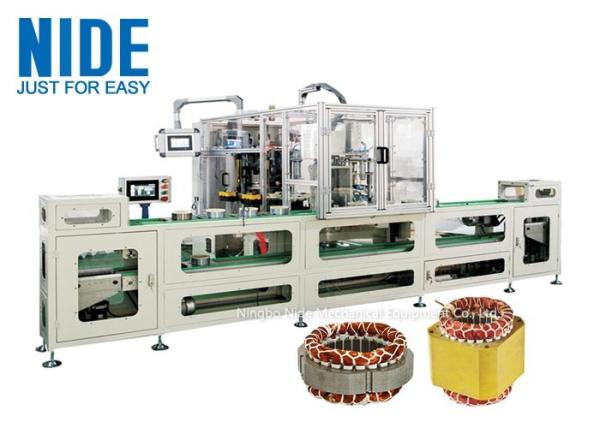

    Full automatic Induction Motor Stator Wire Lace Machine production assembly line-2

    Full automatic Induction Motor Stator Wire Lace Machine production assembly line-3

    Full automatic Induction Motor Stator Wire Lace Machine production assembly line-4
